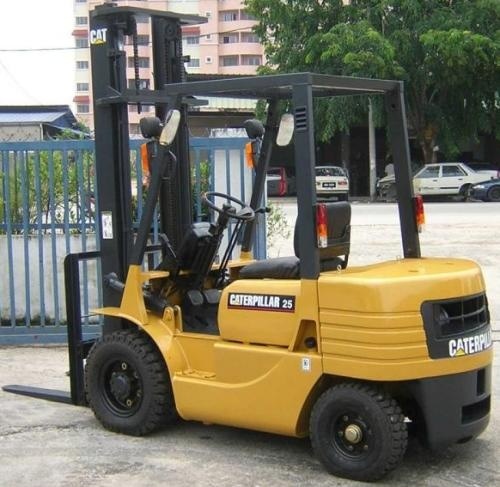

Caterpillar Diesel Forklift Truck DP15, DP18, DP20, DP25, DP30, DP35 Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Caterpillar Diesel Forklift Truck DP-Series.

Original factory manuals for Caterpillar Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:
    DP15
    DP18
    DP20
    DP25
    DP30
    DP35

Language: English
Format: ZIP, Contained Set of PDF Manuals:
1. Chassis and Mast Service Manual, PDF, 376 Pages
    Contents:
        General information
            Scope, Truck models covered, Serial number locations, Dimensions, Technical data
        Cooling system
        Electrical system
            Console box, Battery, Major electrical components, Lamp bulb specifications, Advanced control system,
            Electrical system schematic
        Power train
        Clutches
             Dry-type clutch, Wet-type clutch
        Manual transmission
        Powershift transmission
            Transmission, Control valve
        Front axle and reduction differential
            Front wheels, Front axle, Reduction differential
        Rear axle
             Rear wheels, Rear axle
        Brake system
            Master cylinder, Wheel brakes, Wheel cylinders
        Steering system
            Steering gear, Power cylinder
        Hydraulic system
            Tank, Pump, Solenoid-operated control valve, Lift and tilt cylinders, Down safety valve
        Masts and forks
             Dual-stage panoramic mast
        Troubleshooting
        Service data
            Maintenance standards, Maintenance schedule, Periodic replacement parts,
            Lubrication chart. Special service tools. Inspection guide
2. SQ42 Diesel Engine Service Manual, PDF, 151 Pages
