IEC Motors B14 - 14 Types.

Just imagine how much time you could save...

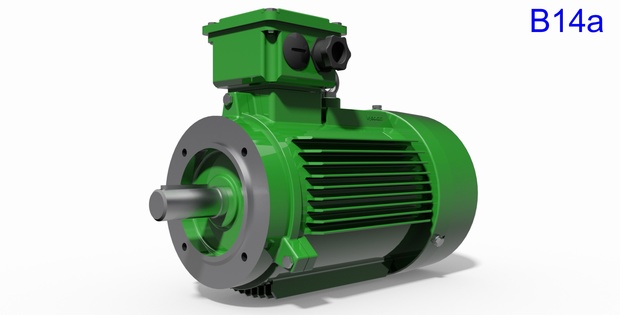

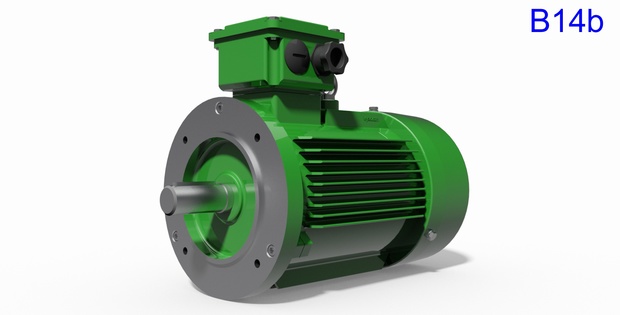

✔ Frame type B14a and B14b - face mount (IM 3601).

✔ All frame sizes from 80 up to 132M (0,75kW - 7,5kW).

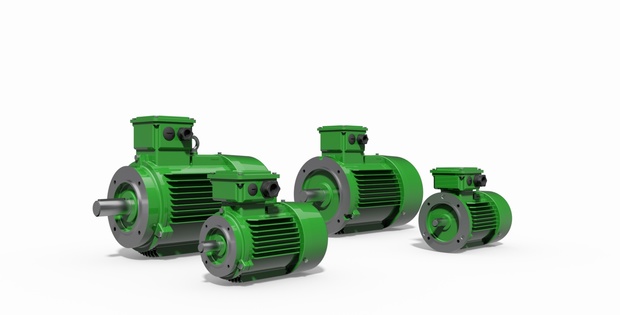

✔ 14 Premium quality 3D CAD models.

✔ Main dimensions according to IEC72-1 and DIN42673 standards.

✔ Datasheets with all main dimensions included.

✔ Content Center(!) library for Autodesk Inventor (2015 and later).

✔ Works perfect together with your standard Inventor libraries.

✔ Supplier free 3D CAD models.

✔ Nowhere else available...

Datasheets included (PDF).





Screenshot using the CAD library in Autodesk Inventor.



Requirements:
◙ Autodesk Inventor 2015 or later.

Filetype:
◙ Content Center .idcl

Licences:
◙ Price is per user.

◙ General licence: the products may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site. Of course you may use the 3D models in your customers designs.


Installing info:
Installing a Content Center library is very easy:
http://www.wyalo.com/video
