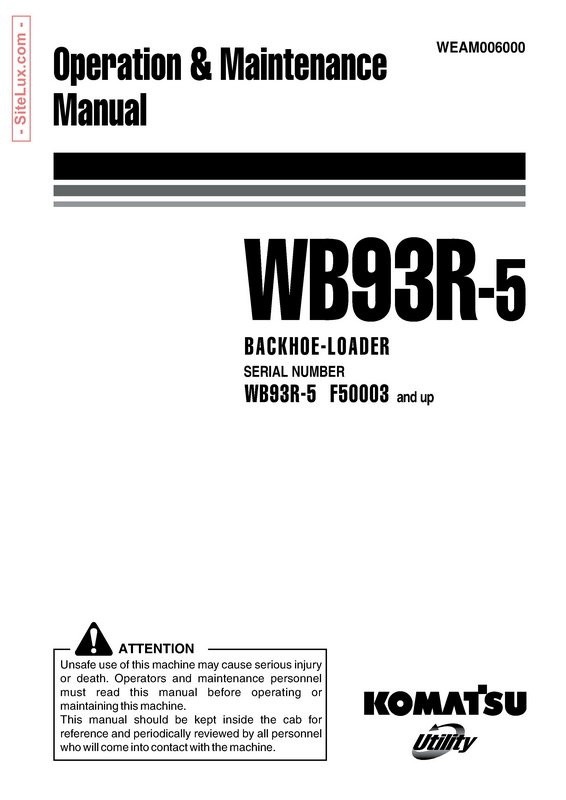

Komatsu WB93R-5 Backhoe Loader Operation & Maintenance Manual - WEAM006000

Komatsu WB93R-5 Backhoe Loader Operation & Maintenance Manual - WEAM006000

This manual describes procedures for operation, handling, lubrication, maintenance, checking, and adjustment. It will help the operator or anyone realize peak performance through effective, economical and safe machine operation and maintenance.


APPLICABLE MODELS :

Komatsu WB91R-2 Backhoe Loader
Serial Numbers : 91F20250 and up

Komatsu WB93R-2 Backhoe Loader
Serial Numbers : 93F25184 and up


MANUAL SPECIFICATION :

File Format : PDF
Language : English
Total Pages : 284
Bookmarked : Yes
Searchable : Yes
Printable : Yes
Part Number : WEAM006000


TABLE OF CONTENTS :

- SAFETY AND ACCIDENT PREVENTION
- DESCRIPTION AND USE OF THE MACHINE
- MAINTENANCE
- TECHNICAL SPECIFICATIONS
- AUTHORIZED OPTIONAL EQUIPMENT

1.1 FOREWORD
1.2 INFORMATION ON SAFETY
1.3 INTRODUCTION
1.4 PRODUCT IDENTIFICATION
2.1 SAFETY, NOISE AND VIBRATION PLATES
2.2 GENERAL PRECAUTIONS
2.3 PRECAUTIONS TO BE TAKEN BEFORE STARTING THE ENGINE
2.4 PRECAUTIONS TO BE TAKEN DURING WORK
2.5 TRANSPORTING THE MACHINE ON OTHER VEHICLES
2.6 BATTERY
2.7 PRECAUTIONS FOR EMERGENCY RECOVERY
2.8 PRECAUTIONS TO BE TAKEN DURING MAINTENANCE
3.1 SAFETY LOCKS
3.2 GENERAL VIEWS
3.3 INSTRUMENTS AND CONTROLS
3.4 FUSES AND RELAYS
3.5 GUARDS, CAB AND DRIVER’S SEAT
3.6 USE OF THE MACHINE
3.7 PARKING THE MACHINE
3.8 STOPPING THE ENGINE
3.9 TRANSPORTING THE MACHINE ON OTHER VEHICLES
3.10 PRECAUTIONS TO BE TAKEN IN THE COLD SEASON
3.11 PRECAUTIONS TO BE TAKEN AT THE END OF THE WINTER
3.12 USING THE MACHINE AS A LOADER
3.13 USING THE MACHINE AS AN EXCAVATOR
3.14 LONG PERIODS OF INACTIVITY
3.15 TROUBLESHOOTING
4.1 GUIDE TO MAINTENANCE
4.2 MAINTENANCE NOTES
4.3 FUEL, COOLANT AND LUBRICANTS
4.4 DRIVING TORQUES
4.5 LUBRICATION
4.6 PERIODICAL CHANGE OF THE SAFETY RELATED COMPONENTS
4.7 MAINTENANCE PLAN
4.8 MAINTENANCE PROCEDURES
5.1 TECHNICAL DATA
6.1 AUTHORIZED OPTIONAL EQUIPMENT
6.2 FRONT EQUIPMENT QUICK COUPLING DEVICES
6.3 4in1 BUCKET
6.4 PALLET FORKS
6.5 BACKHOE TELESCOPIC ARM
6.6 CONFIGURATION FOR THE INSTALLATION OF THE DEMOLITION HAMMER
6.7 APPLICATION OF THE OFFSET DEVICE
6.8 CONFIGURATION FOR THE USE OF OPTIONAL EQUIPMENT WITH UNIDIRECTIONAL OIL FLOW
6.9 CONFIGURATION FOR THE USE OF THE CLAMSHELL BUCKET
6.10 CONFIGURATION FOR THE USE OF THE HAND HYDRAULIC HAMMER
6.11 LOAD STABILIZER SYSTEM (LSS) (Optional)
6.12 REAR EQUIPMENT MECHANICAL QUICK COUPLING DEVICE
