Mitsubishi Diesel Forklift Truck FD20HS, FD25HS, FD30HS Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Mitsubishi Diesel Forklift Truck FD-Series.

Original factory manuals for Mitsubishi Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:
    FD20HS (CF50-10011-up)
    FD25HS (CF50-50011-up)
    FD30HS (CF51-10011-up)

Language: English
Format: ZIP, Contained Set of PDF Manuals:
1. Chassis and Mast Service Manual, PDF, 480 Pages
    Contents:

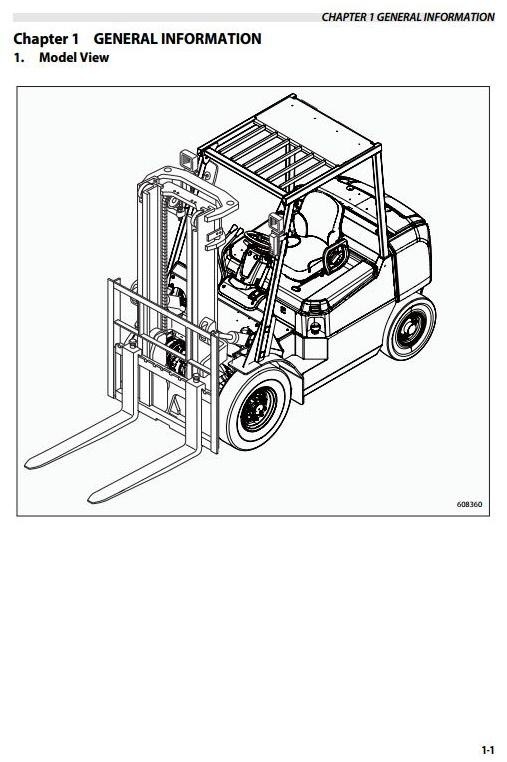

    Chapter 1 GENERAL INFORMATION
        1. Model View
        2. Applicable Truck Model
        3. Serial Number Locations
        4. Dimensions
        5. Technical Data
        6. Performance
    Chapter 2 COOLING SYSTEM
        1. Specifications
        2. Structure
        3. Removing Fan Belt
        3.1 Preparation
        3.2 Removal Sequence
        3.3 Suggestions for Removal
        4. Installing Fan Belt
        4.1 Suggestions for Installation
        5. Inspecting and Adjusting Cooling System
        5.1 Fan Belt Inspection
        5.2 Fan Belt Tension Adjustment
        5.3 Connecting Hoses
        5.4 Cooling Water
        5.5 Radiator Cap
    Chapter 3 ELECTRICAL SYSTEM
        1. Electrical Components and Wiring Outline
        1.1 Locations of Electrical Components
        2. Console Box
        2.1 Console Box Outline
        2.2 Disassembling Console Box
        2.3 Assembling Console Box
        3. Meter Panel
        3.1 Disassembling Meter Panel
        3.2 Assembling Meter Panel
        3.3 Bulb Replacement
        3.4 Warning Lamps and Indicators
        3.5 Hour Meter
        3.6 Fuel Gauge
        3.7 Connector
        4. Main Electrical Components
        4.1 Key Switch
        4.2 Key Switch (Anti-Restart Switch)
        4.3 Light Switch and Turn Signal Switch
        4.4 Direction (FNR) Switch
        4.5 GAS/LPG Select Switch
        4.6 Horn
        4.7 Tank Unit
        4.8 Brake Oil Level
        4.9 Stop Light Switch
        4.10 Thermoswitch (Engine Coolant Temperature)
        4.11 Relay
        4.12 Fuse Box
        4.13 Glow Timer and Glow Relay (Diesel Model)
        4.14 Front Combination Light
        4.15 Front Combination Harness
        4.16 Rear Combination Light (Option)
        4.17 Rear Combination Harness (Option)
        4.18 List of Lights
        5. Battery and Maintenance
        5.1 State of Charge and Electrolyte SpecificGravity (S.G.) Adjustment
        5.2 Specific Gravity Reading and State of Charge
        5.3 Precautions for Battery Charging
        6. Wire Color
        6.1 List of Wire Color Codes
        7. Troubleshooting
        7.1 Starter System
        7.2 Gauges
        7.3 Lighting System
        7.4 Alarm Unit
        7.5 Battery
    Chapter 4 POWER TRAIN
        1. Installation of Engine and Transmission Assembly (for Dual Gas/LPG Models)
        1.1 Removal Sequence of Overhead Guard Cover, Air Cleaner, and Others
        1.2 Suggestions for Removing Overhead Guard Cover, Air Cleaner, and Others
        1.3 Removal Sequence of Controls
        1.4 Suggestions for Removing Controls
        1.5 Suggestions for Installing Controls
        1.6 Preparation for Removing Pipes and Radiator
        1.7 Removal Sequence of Pipes and Radiator
        1.8 Suggestions for Installing Pipes and Radiator
        1.9 Preparation for Removing Engine and Transmission Assembly
        1.10 Removal Sequence of Engine and Transmission Assembly
        1.11 Suggestions for Removing Engine and Transmission Assembly
        1.12 Suggestions for Installing Engine and Transmission Assembly
        2. Installation of Engine and Transmission Assembly (for Diesel Model)
        2.1 Removal Sequence of Overhead Guard Cover, Air Cleaner, and Others
        2.2 Suggestions for Removing Overhead Guard Cover, Air Cleaner, and Others
        2.3 Preparation for Removing Pipes and Radiator
        2.4 Removal Sequence of Pipes and Radiator
        2.5 Suggestions for Removing Pipes and Radiator
        2.6 Suggestions for Installing Pipes and Radiator
        2.7 Preparation for Removing Engine and Transmission Assembly
        2.8 Removal Sequence of Engine and Transmission Assembly
        2.9 Suggestions for Removing Engine and Transmission Assembly
        2.10 Suggestions for Installing Engine and Transmission Assembly
    Chapter 5 POWERSHIFT TRANSMISSION
        1. Structure
        1.1 External View of Torque Converter Transmission
        1.2 External View of Control Valve
        1.3 Transmission Components
        1.4 Torque Converter Components
        1.5 Torque Converter Drive Control Components
        1.6 Schematic Diagram of Powershift Transmission Hydraulic System
        2. Removing Transmission
        2.1 Suggestions for Removal
        3. Installing Transmission
        3.1 Suggestions for Installation
        4. Disassembling Torque ConverterTransmission
        4.1 Preparation
        4.2 Removing Transmission Accessories
        4.3 Removing Oil Pump
        4.4 Removing Transmission Housing
        4.5 Removing Input Shaft, Idler Shaft, and Output Gear
        4.6 Disassembling Transmission Housing
        4.7 Disassembling Torque Converter Housing
        4.8 Disassembling Idler Shaft
        4.9 Disassembling Output Gear
        4.10 Disassembling Forward Side Input Shaft Gear Assembly
        4.11 Disassembling Reverse Side Input Shaft Gear
        4.12 Disassembling Oil Pump
        5. Assembling Torque Converter Transmission
        5.1 Assembling Transmission Housing
        5.2 Assembling Idler Shaft Assembly
        5.3 Assembling Output Gear Assembly
        5.4 Inspecting Input Shaft Gear Assembly
        5.5 Assembling Forward Side Input Shaft Gear Assembly
        5.6 Assembling Reverse Side Input Shaft Gear Assembly
        5.7 Assembling and Installing Oil Pump Assembly
        5.8 Assembling Torque Converter Housing
        5.9 Installing Transmission Housing
        5.10 Installing Transmission Accessories
        5.11 Installing Servo Case Assembly
        6. Disassembling Control Valve
        6.1 Removing Control Valve Accessories
        6.2 Removing Valve Body Plate
        6.3 Removing Plugs
        6.4 Removing Strainer
        6.5 Disassembling Regulator Valve Section
        6.6 Disassembling Accumulator Valve Section
        6.7 Disassembling Inching Valve Section
        6.8 Removing Oil Seal and Plug
        7. Assembling Control Valve
        7.1 Assembly Sequence of Control Valve
        7.2 Suggestions for Assembly
        7.3 Washing and Inspecting
        7.4 Installing Valve Plug and Oil Seal
        7.5 Assembling Inching Valve Section
        7.6 Assembling Accumulator Valve Section
        7.7 Assembling Regulator Valve Section
        7.8 Installing Strainer
        7.9 Installing Plug
        7.10 Installing Valve Body Plate and Breather Cover
        7.11 Assembling Control Valve Accessories
        8. Inspection and Adjustment
        8.1 Oil Pressure Measurement
        8.2 Adjusting Brake (Inching) Pedal
        8.3 Adjusting Inching Cable
        9. Troubleshooting
        10. Service Data
        10.1 Pump Boss
        10.2 Pilot Boss
        10.3 Oil Pump
        10.4 Flexible Plate
        10.5 Clutches
        10.6 Input Shaft
    Chapter 6 FRONT AXLE AND REDUCTION DIFFERENTIAL
        1. Structure
        1.1 2 Ton Class
        1.2 3 Ton Class
        2. Removing Front Wheels
        2.1 Preparation
        2.2 Removal
        3. Installing Front Wheels
        4. Removing Front Axle and Reduction Differential
        4.1 Preparation
        4.2 Removal Sequence
        4.3 Suggestions for Removal
        5. Installing Front Axle
        6. Disassembling Front Axle
        6.1 Disassembly Sequence
        6.2 Suggestions for Disassembly
        7. Inspection and Repair After Disassembling Front Axle
        8. Assembling Front Axle
        9. Disassembling Reduction Differential
        9.1 Disassembly Sequence
        9.2 Suggestions for Disassembly
        10. Inspection and Repair After Disassembling Reduction Differential
        11. Assembling Reduction Differential
        11.1 Assembly Sequence
        11.2 Suggestions for Assembly
        11.3 Adjustment
        12. Troubleshooting
        13. Service Data
        13.1 Hub and Wheels
        13.2 Reduction Differential
    Chapter 7 REAR AXLE
        1. Rear Axle Structure
        1.1 Main Components
        1.2 Specifications for Wheel Alignment and Steering Angle
        1.3 Main Components of Wheel Hub Section
        1.4 Main Components of Kingpin Section
        1.5 Main components of Tie Rod Section
        1.6 Main Components of Rear Axle Center Section
        1.7 Main Components of Steering Cylinder
        2. Removing Rear Wheels
        2.1 Suggestions for Removal
        3. Installing Rear Wheels
        4. Removing Rear Axle Assembly
        4.1 Removal Sequence
        4.2 Suggestions for Removal
        5. Inspection and Repair After Disassembling Rear Axle Assembly
        6. Installing Axle Assembly
        7. Disassembling Wheel Hub
        7.1 Disassembly Sequence
        7.2 Suggestions for Disassembly
        8. Inspection and Repair After Disassembling Wheel Hub Section
        9. Assembling Wheel Hub Section
        9.1 Suggestions for Assembly
        9.2 Assembling and Adjusting Wheel Bearing
        10. Disassembling Knuckle Section (Kingpin)
        10.1 Preparation
        10.2 Suggestions for Disassembly
        11. Inspection After Disassembly Knuckle Section (Kingpin)
        12. Assembling Knuckle Section (Kingpin)
        12.1 Suggestions for Assembly
        13. Removing Steering Cylinder
        13.1 Preparation
        13.2 Suggestions for Removal
        14. Disassembling Steering Cylinder
        14.1 Disassembly Sequence
        14.2 Suggestions for Disassembly
        15. Inspection and Repair After Disassembling Steering Cylinder
        16. Assembling Steering Cylinder
        16.1 Suggestions for Assembly
        17. Disassembling Tie Rod
        17.1 Disassembly Sequence
        17.2 Suggestions for Disassembly
        18. Assembling Tie Rod
        18.1 Suggestions for Assembly
    Chapter 8 BRAKE SYSTEM
        1. Structure of Brake System
        2. Disassembling Master Cylinder
        2.1 Disassembly Sequence
        3. Inspection and Repair After Disassembling Master Cylinder
        4. Assembling Master Cylinder.
        4.1 Suggestions for Assembly
        5. Structure of Wheel Brakes
        6. Disassembling Wheel Brakes
        6.1 Preparation
        6.2 Disassembly Sequence
        6.3 Suggestions for Disassembly
        7. Inspection and Repair After Disassembling Wheel Brakes
        8. Assembling Wheel Brakes
        8.1 Assembly Sequence
        8.2 Suggestions for Assembly
        9. Disassembling Wheel Cylinder
        9.1 Disassembly Sequence
        10. Inspection and Repair After Disassembling Wheel Cylinder
        11. Assembling Wheel Cylinder.
        12. Inspecting and Adjusting Brake System
        12.1 Operation Test of Automatic Adjuster
        12.2 Manual Adjustment Procedure
        12.3 Adjusting Parking Brake Cable
        12.4 Adjusting Brake Pedal
        12.5 Bleeding Brake Oil Line
        12.6 Braking Performance Test
        12.7 Adjusting Parking Brake Lever
        13. Troubleshooting
        14. Service Data
    Chapter 9 STEERING SYSTEM
        1. Structure and Functions
        1.1 General
        1.2 Steering Valve
        1.3 Steering Column
        2. Disassembling and Assembling Pipes and Hoses
        2.1 Suggestions for Disassembly and Assembly
        3. Disassembling Steering Wheel and Steering Valve
        3.1 Disassembly Sequence
        3.2 Suggestions for Disassembly
        4. Installing Steering Wheel and Steering Valve
        5. Installation
        5.1 Inspection After Installation
        6. Removing Steering Valve
        7. Installing Steering Valve
        8. Disassembling Tilt Lock Lever
        9. Assembling Tilt Lock Lever
        10. Disassembling Steering Valve
        10.1 Disassembly Sequence
        10.2 Suggestions for Disassembly
        11. Inspection After Disassembly
        12. Assembling Steering Valve
        12.1 Assembly Sequence
        13. Troubleshooting
        14. Service Data
    Chapter 10 HYDRAULIC SYSTEM
        1. Structure and Functions
        1.1 Outline
        1.2 Hydraulic Lines Diagram
        1.3 Hydraulic Tank
        1.4 Gear Pump
        1.5 Control Valve
        1.6 Down Safety Valve
        1.7 Lift Cylinder (First Cylinder for Duplex and Triplex Mast)
        1.8 Lift Cylinder (Second Lift Cylinder for Simplex Mast and Triplex Mast)
        1.9 Lift Cylinder (Second Lift Cylinder for Duplex Mast)
        1.10 Tilt Cylinder
        2. Removing Hydraulic Pump
        2.1 Removal Sequence
        2.2 Suggestions for Removal
        3. Installing Hydraulic Pump
        3.1 Suggestions for Installation
        4. Disassembling Hydraulic Pump
        4.1 Disassembly Sequence
        4.2 Suggestions for Disassembly
        5. Inspecting and Repairing Hydraulic Pump
        6. Assembling Hydraulic Pump
        6.1 Suggestions for Assembly
        6.2 Operation Test
        7. Removing Lift Cylinders
        8. Disassembling Lift Cylinder (First Cylinder for Duplex and Triplex Masts)
        8.1 Disassembly Sequence
        8.2 Suggestions for Disassembly
        9. Inspecting Lift Cylinder (First Cylinder for Duplex and Triplex Masts)
        10. Assembling Lift Cylinders (First Cylinder for Duplex and Triplex Masts)
        10.1 Assembly Sequence
        10.2 Suggestions for Assembly
        11. Disassembling Lift Cylinder (Second Cylinder for Simplex Mast and Triplex Mast)
        11.1 Disassembly Sequence
        11.2 Suggestions for Disassembly
        12. Inspecting Lift Cylinder (Second Cylinder for Simplex Mast and Triplex Mast)
        13. Assembling Lift Cylinders (Second Cylinder for Simplex Mast and Triplex Mast)
        13.1 Assembly Sequence
        13.2 Suggestions for Assembly
        14. Removing Tilt Cylinders
        14.1 Preparation
        14.2 Removal Sequence
        14.3 Suggestions for Removal
        15. Installing Tilt Cylinders
        15.1 Suggestions for Installation
        16. Disassembling Tilt Cylinder
        16.1 Disassembly Sequence
        16.2 Suggestions for Disassembly
        17. Inspection After Disassembling Tilt Cylinder
        18. Assembling Tilt Cylinder
        18.1 Assembly Sequence
        18.2 Suggestions for Assembly
        19. Piping
        19.1 Piping for Diesel Engine Models
        19.2 Piping for Dual Gas/LPG Engine Models
        20. Removing Suction Strainer and Return Filter
        20.1 Removal Sequence
        20.2 Suggestions for Removal
        21. Inspecting Suction Strainer and Return Filter
        22. Installing Suction Strainer and Return Filter
        22.1 Suggestions for Installation
        23. Inspection and Adjustment
        23.1 Inspecting and Adjusting Hydraulic Tank
        23.2 Inspecting Control Valve
        23.3 Vertical Drift Test
        23.4 Tilt Drift Test
        24. Troubleshooting
        24.1 Hydraulic Tank
        24.2 Gear Pump
        24.3 Control Valve
        24.4 Lift and Tilt Cylinders
        25. Service Data
        25.1 First Cylinder for Duplex and Triplex Masts
        25.2 Second Cylinder for Simplex and Triplex Masts
        25.3 Second Cylinder for Duplex Mast
        25.4 Tilt Cylinder
        26. Outline of Control Valve
        26.1 Hydraulic Lines Diagram of Hydraulic Control Valve
        26.2 Inlet Section
        26.3 Lift and Tilt Section (Lift Function)
        26.4 Lift and Tilt Section (Tilt Function)
        26.5 Unload Valve
        27. Removing Control Valve
        27.1 Removal Sequence
        28. Installing Control Valve
        28.1 Suggestions for Installation
        29. Disassembling Control Valve - Inlet Section
        29.1 Disassembly Sequence
        29.2 Suggestions for Disassembly
        30. Disassembling Control Valve - Lift Valve
        30.1 Disassembly Sequence
        30.2 Suggestions for Disassembly
        31. Disassembling Control Valve - Tilt Valve
        31.1 Disassembly Sequence
        31.2 Suggestions for Disassembly
        32. Disassembling Control Valve - End Cover Section
        32.1 Disassembly Sequence
        33. Disassembling Control Valve - End Cover Section
        34. Assembling Control Valve - End Cover Section
        34.1 Suggestions for Assembly
        35. Assembling AttachmentSection (Option)
        35.1 Assembly Sequence
        35.2 Suggestions for Assembly
    Chapter 11 MAST AND FORKS
        1. Simplex Mast
        1.1 Mast System
        1.2 Structure and Functions (5V25D to 5V30D)
        1.3 Removal Sequence of Mast and Lift Bracket Assembly
        1.4 Suggestions for Removing Mast and Lift Bracket Assembly
        1.5 Suggestions for Installing Mast and Lift Bracket Assembly
        1.6 Removal Sequence of Mast and Lift Bracket
        1.7 Suggestions for Disassembling Mast and Lift Bracket
        1.8 Inspection of Mast and Lift Bracket (All MastModels)
        1.9 Assembly Sequence of Lift Bracket Roller (All Mast Models)
        1.10 Lift Bracket Clearance Adjustment (All Mast Models)
        1.11 Installing Mast Rollers (All Mast Models)
        1.12 Installing Mast Strips (All MastModels)
        1.13 Installing Lift Cylinders
        1.14 Connecting Chains
        1.15 Installing Hydraulic Lines
        1.16 Removing and Installing Mast Rollers and Strips Without Removing Mast from Truck
        1.17 Inspection and Adjustment
        1.18 Inspecting Forks (All Mast Models)
        1.19 Inspecting and Adjusting Chain Tension (All Mast Models)
        1.20 Measuring Chain Elongation (All Mast Models)
        1.21 Adjusting Clearance Between LiftBracket Roller and Inner Mast (All Mast Models)
        1.22 Adjusting Mast Roller Clearance (All Mast Models)
        1.23 Inspecting and Adjusting Mast Strip Clearance (All Mast Models)
        1.24 Adjusting Mast Tilt Angle (All Mast Models)
        1.25 Inspecting and Adjusting Right and Left Lift Cylinder Stroke (All Mast Models)
        1.26 Troubleshooting
        1.27 Service Data
        2. Duplex Mast
        2.1 Mast System
        2.2 Structure and Functions (5F25C to 5F30C)
        2.3 Removal Sequence of Mast and Lift Bracket Assembly
        2.4 Suggestions for Removing Mast and Lift Bracket Assembly
        2.5 Suggestions for Installing Mast and Lift Bracket Assembly
        2.6 Disassembly Sequence of Mast and Lift Bracket
        2.7 Preparation for Disassembling Mast and Lift Bracket
        2.8 Suggestions for Disassembling Mast and Lift Bracket
        2.9 Inspection of Mast and Lift Bracket (All MastModels)
        2.10 Assembly Sequence of Lift Bracket Roller (All Mast Models)
        2.11 Lift Bracket Clearance Adjustment (All Mast Models)
        2.12 Installing Mast Rollers (All Mast Models)
        2.13 Installing Mast Strips (All Mast Models)
        2.14 Installing Second Lift Cylinder
        2.15 Installing First Lift Cylinder
        2.16 Connecting Chains
        2.17 Installing Hydraulic Lines
        2.18 Removing and Installing Mast Rollers and Strips Without Removing Mast from Truck
        2.19 Inspection and Adjustment
        2.20 Inspecting Forks (All Mast Models)
        2.21 Inspecting and Adjusting Chain Tension (All Mast Models)
        2.22 Measuring Chain Elongation (All Mast Models)
        2.23 Adjusting Clearance Between LiftBracket Roller and Inner Mast (All Mast Models)
        2.24 Adjusting Mast Roller Clearance (All Mast Models)
        2.25 Inspecting and Adjusting Mast Strip Clearance (All Mast Models)
        2.26 Adjusting Mast Tilt Angle (All Mast Models)
        2.27 Inspecting and Adjusting Right and Left Lift Cylinder Stroke (All Mast Models)
        2.28 Troubleshooting
        2.29 Service Data
        3. Triplex Mast
        3.1 Mast System
        3.2 Structure and Functions (5M25D to 5M30D)
        3.3 Removal Sequence of Mast and Lift Bracket Assembly
        3.4 Suggestions for Removing Mast and Lift Bracket Assembly
        3.5 Suggestions for Installing Mast and Lift Bracket Assembly
        3.6 Disassembly Sequence of Mast and Lift Bracket (All Mast Models)
        3.7 Preparation for Disassembling Mast and Lift Bracket
        3.8 Suggestions for Disassembling Mast and Lift Bracket
        3.9 Inspecting Mast and Lift Bracket (All Mast Models)
        3.10 Assembly Sequence of Lift Bracket Roller (All Mast Models)
        3.11 Lift Bracket Clearance Adjustment (All Mast Models)
        3.12 Installing Mast Rollers (All Mast Models)
        3.13 Installing Mast Strips (All Mast Models)
        3.14 Installing Second Lift Cylinder
        3.15 Installing First Lift Cylinder
        3.16 Connecting Chains
        3.17 Installing Hydraulic Lines
        3.18 Removing and Installing Mast Rollers and Strips Without Removing Mast from Truck
        3.19 Inspection and Adjustment
        3.20 Inspecting Forks (All Mast Models)
        3.21 Inspecting and Adjusting Chain Tension (All Mast Models)
        3.22 Measuring Chain Elongation (All Mast Models)
        3.23 Adjusting Clearance Between LiftBracket Roller and Inner Mast (All Mast Models)
        3.24 Adjusting Mast Roller Clearance (All Mast Models)
        3.25 Inspecting and Adjusting Mast Strip Clearance (All Mast Models)
        3.26 Adjusting Mast Tilt Angle (All Mast Models)
        3.27 Inspecting and Adjusting Right and Left Lift Cylinder Stroke (All Mast Models)
        3.28 Troubleshooting
        3.29 Service Data
    Chapter 12 SERVICE DATA
        1. Maintenance Schedule
        2. Tightening Torques for Standard Bolts and Nuts
        2.1 Metric Fine Thread
        2.2 Metric Coarse Thread
        3. Periodic Replacement Parts
        3.1 Safety Critical Parts
        4. Lubrication Schedule
        4.1 Lubrication Chart
        4.2 Fuel and Lubricant Specifications
        4.3 Adjustment Value and Oil Capacity
        5. Special tools
        5.1 Special Service Tools (Powershift Transmission)
        5.2 Special Service Tools (Front Axle and Reduction Differential)
        5.3 Special Service Tools (Brake System)
        5.4 Special Service Tools (Steering System)
        5.5 Special Service Tools (Hydraulic System)
    Chapter 13 HOW TO READ CIRCUIT DIAGRAMS
        1. Description of Circuit Diagrams
        1.1 Circuit Diagrams
        1.2 Connector Diagrams
        2. How to Read Circuit Diagrams
        2.1 Symbols
        2.2 Sheet Symbol
        2.3 Connecting Lines
        2.4 Equipment
        2.5 Relay Contactor and Coil
        2.6 Connectors
        2.7 Indication of Connecting Line
        2.8 Indication of GND (Earth)
        2.9 Indication of Another Specification
        3. How to Read Connector Diagrams
    Chapter 14 CIRCUIT DIAGRAM FOR DUAL GAS/LPG ENGINE MODELS
    Chapter 15 CIRCUIT DIAGRAM FOR DIESEL ENGINE MODELS
2. S4S Diesel Engine (Tier 2) Service Manual, PDF, 165 Pages
Powered by
