Assignment7.java (The Assignment7 class extends JApplet)

Assignment7.java (The Assignment7 class extends JApplet)Line.javaWholePanel.java (It extends JPanel. It needs to be completed.)You may add more classes or more methods than they are specified. (You might need them.)Skills to be Applied:Swing/AWTClasses may be needed:
JApplet,
JButton, Container, JPanel, JRadioButton, ButtonGroup, JSplitPane,
Color, Graphics, ActionListener, Point, MouseListener, and ArrayList.
You may use other classes.Program DescriptionSuggested Class Diagram:Write a Java program that constructs an Applet.The
Applet (JApplet) of your program should contain five JRadioButtons
which a user can use to select a color to draw a line, two buttons
"Undo" and "Erase", and one drawing panel where lines can be drawn.
Radio buttons and two buttons are located at the left side of the
applet.(The size of the applet here is approximately 400 X 400). A
user can choose a color using radio buttons to draw lines. Until the
color is changed, any line will be drawn with that color. The default
color is black.A user can move a mouse in the drawing panel and
press the mouse where he/she wants to start drawing a line. The first
point that a user clicks will be the starting point of the line. After a
user presses the mouse, a user should "drag" the mouse until the mouse
reaches to a point to determine the ending point of the line.When a user is dragging the mouse, the drawing panel should show a line using the starting point and the current point.When a user releases the mouse to finalize the ending of the line, the final line should be shown.A user can continue to draw more lines. If two lines are overlapped, the line drawn later will be shown on the top.When
a user pushes the "Undo" button, the last drawn line will be erased
from the drawing area. Thus if a user keeps pushing the "Undo" button,
eventually all lines will be erased.When a user pushes the
"Erase" button, all lines should be erased. If a user pushes the "Undo"
button immediately after pushing the "Erase" button, then all erased
lines should come back (re-drawn) on the drawing panel.Click here to view the appletClass descriptionLine classThe Line class represents a line to be drawn in the panel. It should contain at least the following instance variable: Attribute name Attribute type Description x1 int x-coordinate of the starting point of the line to be drawn. y1 int y-coordinate of the starting point of the line to be drawn. x2 int x-coordinate of the ending point of the line to be drawn. y2 int x-coordinate of the ending point of the line to be drawn. color Color color of the line. This class should have a constructor:public Line(int x1, int y1, int x2, int y2, Color color)where
the parameters x1 and y1 are (x1,y1) coordinate of the starting point
of the line, x2 and y2 are (x2,y2) coordinate of the ending point of the
line, and color is the color of the line.This class should also contain a method:public void draw(Graphics page)This method should set the color and draw the line specified by its coordinates (x1,y1) and (x2,y2).
You can utilize its Graphics object parameter and drawLine method.CanvasPanel classThe
CanvasPanel class extends JPanel defined in javax.swing package. This
is where lines are drawn. The background of this panel is white. It must
contain the following method.public void paintComponent(Graphics page)Using
the parameter, the Graphics object, this method will draw lines with
their selected color, and coordinates. This can be done by calling the
draw method of the Line class. Remember that this method need to call
paintComponent method defined in its parent class. This class can be

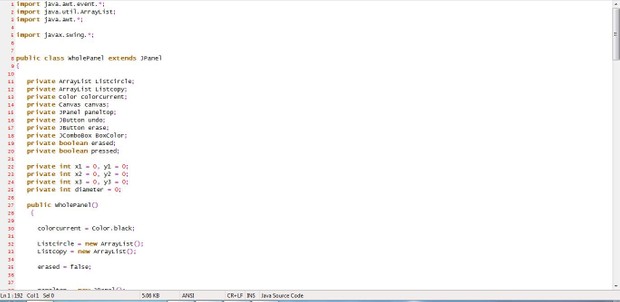

defined as nested class within the WholePanel class.WholePanel classThe
WholePanel class organizes all components in the applet. It extends
JPanel defined in javax.swing package. It should contain at least the
following instance variable: Attribute name Attribute type Description lineList ArrayList A list of line objects that are drawn so far. This class should have a constructor:public WholePanel()This
is where all components are arranged. Add as many instance variable as
you would like to this class, and initialize them in this constructor.
One way to define this class is to contain an object of CanvasPanel, two
buttons "Undo", and "Erase", and objects of JRadioButton to choose
colors.ButtonListener classThe ButtonListener class
implements ActionListener interface defined in java.awt.event package.
It must implement the following method:public void actionPerformed(ActionEvent event)In
this method, the action to be performed in case one of "Undo", and
"Erase" button is pushed. This listener is used with JButtons.ColorListener classThe
ColorListener class implements ActionListener interface defined in
java.awt.event package. It must implement the following method:public void actionPerformed(ActionEvent event)In
this method, the color selected by using the JRadioButtons is assigned
as a color to be used to draw a line. This listener is used together
with JRadioButtons.PointListner classThe PointListener
class implements MouseListener interface and MouseMotionListener
interface. It must implement the following method:public void mousePressed(MouseEvent event)When
a user presses a mouse, that point is defined as the starting point of a
line to be drawn. You might call this pressed point's coordinate (x1,
y1).public void mouseDragged (MouseEvent event)After a
user presses a mouse and drags it, a line needs to be drawn using the
starting point and the current coordinate as the ending point of the
line. You might call this dragged point's coordinate (x2, y2). As long
as a mouse is not released yet (still dragging), then the line will keep
changing.public void mouseReleased(MouseEvent event)When a
user releases a mouse, a line needs to be drawn using the released
point as the final point of the line. You might call this released
point (x3, x3).Other methods from MouseListener and MouseMotionListener can be left as blank.Note that these tree listener classes and CanvasPanel class can be defined as nested classes inside of the WholePanel class.How to get started:Download the following files and use them as a base of your program:Assignment7.java
WholePanel.java

Step 0: Define Line class in the Line.java file. There are only two methods in this class, and they are straight forward.

Step
1: Complete WholePanel.java file. Define the mousePressed method to get
the point that a mouse is pointing. Use the point where the mouse is
pushed to get its (x,y)-coordinate.

Step 2: Define the
mouseDragged method. At this point, you will have two coordinate (x1,y1)
and (x2,y2), one is a pressed point and the other is a dragged point.
Using these two points, draw a line in the paintComponent method, then
again, call it by calling repaint() method using an object of the class
that has the paintComponent method.

Step 3: Define the
mouseReleased method. At this point, you will have the third coordinate
(x3, y3), the point where a mouse is released. Instantiate an object of
Line class, by passing its starting point (x1,y1), its ending point
(x3,y3), and its color. At this point, the color is just black by
default.

Since there will be many lines created, we can use an ArrayList called "lineList" to add an object of Line.

Step 4: Define the paintComponent method to draw all lines in the lineList. You need a loop to do this.

Step
5: Add the "Undo" and "Erase" buttons, and create ButtonListener class
to implement actionPerformed method. "Undo" will delete the last line,
so you need to do something with the lineList and re-draw. "Erase" will
delete all lines.

Step 6: Add the JRadioButtons to select colors and also create ColorListener to implement actionPerformed method.

More steps: These are just skeletons. You need to adjust your code to make it work cleanly.
