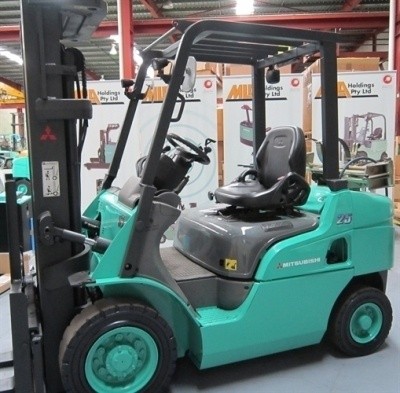

Mitsubishi Forklift FGE15N, FGE18N, FGE20N(CN,ZN), FGE25N(ZN), FGE30N, FGE35AN Service Manual

Original Illustrated Factory Workshop Service Manual for Mitsubishi Gasoline/LPG Forklift Truck FG-Series.

Original factory manuals for Mitsubishi Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:
    FGE15N (F34-00001/19001-up)
    FGE18N (F34-40001/49001-up)
    FGE20CN (F34-30001/39001-up)
    FGE20N (F17D-20001/38001-up)
    FGE20ZN (F35-20001/38001-up)
    FGE25N (F17D-70001/88001-up)
    FGE25ZN (F35-70001/88001-up)
    FGE30N (F13F-10001/20001-up)
    FGE35AN (F13F-80001/90001-up)

Language: English
Format: ZIP, Contained Set of PDF Manuals:
1. Chassis and Mast Service Manual, PDF, 568 Pages
    Contents:
        GENERAL INFORMATION
            Truck Models Covered, Serial Number Locations, Dimensions, Technical Data
        COOLING SYSTEM
            Fan Belt Removal and Installation, Fan Belt Tension
        ELECTRICAL SYSTEM

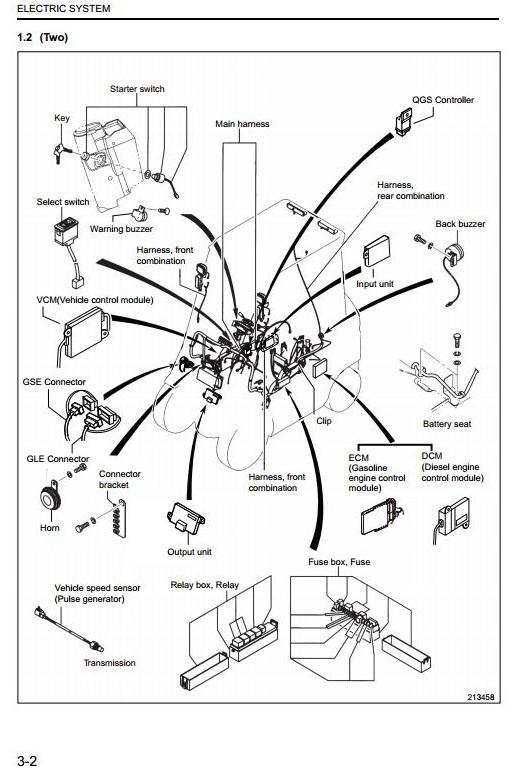

            Console Box, Chassis Electrical Devices, Battery Maintenance, Electrical Schematic
        CONTROLLERS
            Main Functions of Controller, Input/Output Monitor, Error Codes and Troubleshooting
        POWER TRAIN
            Removal and Installation of Power Line
        CLUTCHES
            Dry-Type Clutch, Wet-Type Clutch
        MANUAL TRANSMISSION
            Structure, Removal and Installation of Transmission
        POWERSHIFT TRANSMISSION
            Torque Converter, Singe Speed Powershift Transmission Control Valve, Automatic Two-Speed Transmission
        FRONT AXLE AND REDUCTION DIFFERENTIAL
            Front Tire, Front Axle, Reduction, Differential
        REAR AXLE
            Rear Axle, Rear Tire
        BRAKE SYSTEM
            Master Cylinder, Wheel Brake, Brake Booster
        STEERING SYSTEM
            Steering Gear, Power Cylinder, Flow Divider
        HYDRAULIC SYSTEM
            Tank, Pump, Control Valve,Lift and Tilt Cylinders, Flow Regulator Valve, Down Safety Valve
        MAST AND FORKS
            Simplex and Duplex Masts, Triplex Mast
        SERVICE DATA
            Maintenance Standard, Maintenance Schedule, Periodic Replacement Parts,
            Lubrication Instruction, Special Tool Needed
2. K15, K21, K25 Gasoline Engine Service manual, PDF, 232 Pages
   Included Chapters:
        GI GENERAL INFORMATION
        MA MAINTENANCE
        ET ENGINE TUNE-UP
        EM ENGINE MECHANICAL
        EC ENGINE CONTROL
        LC ENGINE LUBRICATION
        & COOLING SYSTEM
        EF ENGINE FUEL
        EE ENGINE ELECTRICAL
3. Wet Brake System Supplement Service Manual, PDF, 124 Pages
    Conntents:
         GENERAL
             Overview
         ELECTRICAL SYSTEM
             Electrical System, Vehicle Electronic System Wiring,
             Instrument Panel, Electrical Schematic
         CONTROLLERS
             Main Functions of Each Controller, List of Diagnosis
             Contents (D-code)
         POWER TRAIN
             Removal and Installation Procedure and Points (MC models)
         TORQUE CONVERTER DRIVE TRANSMISSION
             Brake Pedal (Inching Pedal) Adjustment
         FRONT AXLE AND REDUCTION DIFFERENTIAL
             Removal and Installation Procedure,
             Disassembly and Reassembly Procedure
         BRAKE SYSTEM
             Disassembly and Reassembly, Measurement of Hy
             draulic Pressure, Forcible Release of Parking Brake
         SERVICE DATA
             Maintenance Schedule, Periodically Inspected Parts,
             Supply Oil Standard, List of Special Tools
