Jungheinrich Electric Reach Truck ETVC-16, ETVC-20 (06.2008-03.2015) Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electric Reach Truck Type ETVC.

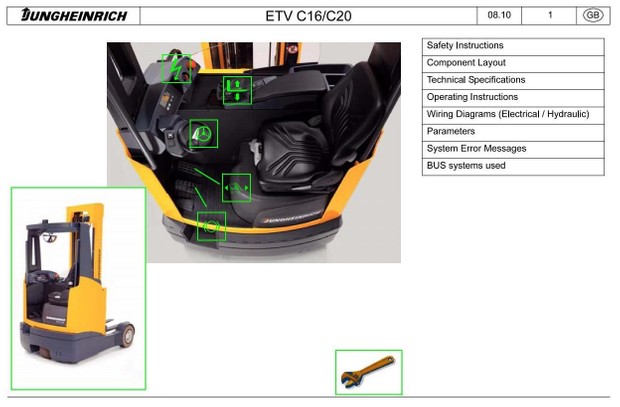

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

Covered models:
    ETVC-16 (06.2008-03.2015)
    ETVC-20 (06.2008-03.2015)

Language: English
Format: ZIP, Contained set of PDF manuals:
    1. Operating manual, PDF, 125 Pages
    2. Service manual, PDF, 360 Pages
    Contents:
        Safety Instructions
        Component Layout
        Technical Specifications
        Operating Instructions
        Wiring Diagrams (Electrical / Hydraulic)
        Parameters
        System Error Messages
        BUS systems used
        Drive unit
            -Parking brake
        Wheel brake
            -Single disk brake
        Display
            -Display
        Diagnostics with JULIA Controls
            -CANCODE
            -ISM access module (see ISM)
        Misc. electrical
            -Fuses
        Truck lighting
            -Beacon (LED)
        Wiring
            - Connectors/Binders
            -Saab connector pin layout
        Electrical System
            -Traction controller
        Wheels
            -Drive wheel
        mech. Transmission
            -Transmission
        Labels / Documentation
            - Plate Part numbers Components
        Battery compartment
            - Battery lock
        Controls
            -Solopilot
            -Multipilot service manual J3001
        Electrical system
            -Hydraulic controller
        Hydr. Mast
            -Mast adjustment and servicing service manual G 1001
            -Mast assembly service manual G1005
        Hydraulic system
            -Valve block
            - Hydraulic connector system service manual 14001
        Load handler
            -Fork tines service manual G1 6401.01
            -Weigher option
        Mast reach (Retrak)
            -Mast support adjustment
        Commissioning
            -Using the truck for the first time (see Operating Instructions, Chapter C)
        Maintenance
            -Notes on how to avoid malfunctions and material damage when cleaning an industrial truck see service manual Z 0000.15
            -Notes on how to avoid accidents and material damage during maintenance, testand repair work on industrial trucks with electronic components see service manual J 6900.09
            -Regular safety inspection(at least annually)
            -Maintenance checklist B
            -Maintenance checklist C
        Electrical system
            -Steering controller
