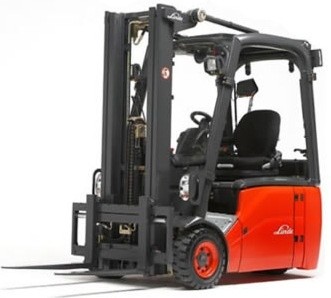

Linde Lift Truck 386 Explosion Protected with PL-G1000 Series: E14, E16, E18, E20 Service Manual

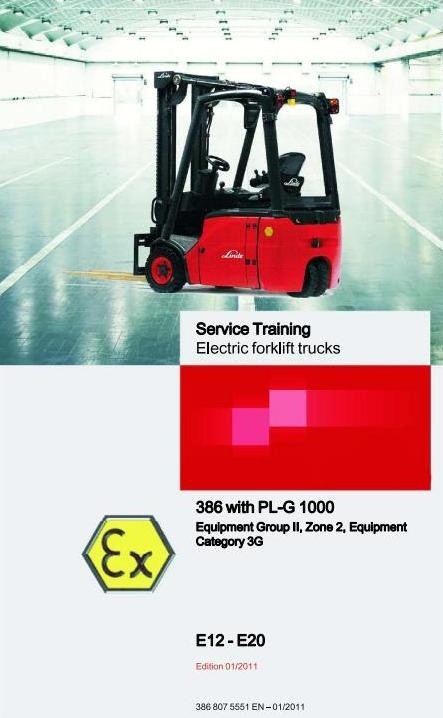

Original Illustrated Factory Workshop Service Manual for Linde Electric Lift Truck 386 Explosion Protected with PL-G1000 Series.

Original factory manuals for Linde Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck

Covered models:
    E14
    E16
    E18
    E20

Format: PDF, 80 Pages
Language: English

Contents:
    1 Motor
        Drive axle
        Drive axle
    4 Chassis frame
        Tyres
        Checking the tyres for leak resistance
    5 Operating devices
        Display and operating devices
        Display and operating devices
    6 Electrics/electronics
        Electrical system
        Description
        Electrical components in the additional electrical installation housing
        Electrical controller
        Control housing
        Auxiliary housing
        Gas safety system
        Devices and components
        Remove and install channel and acknowledgement modules
        Commissioning
        Setting the alarm thresholds
        Calibrating measuring heads using calibration gas
        Faults and troubleshooting
    Annex
    10 Circuit diagrams
        Wiring diagram
        Basic equipment wiring diagram, part 1 : Power modules, fuse circuit
        Basic equipment wiring diagram, part 2: control circuit
        Basic equipment wiring diagram, part 3: Control circuit, combi-controller
        Basic equipment wiring diagram, part 4: Gas safety system
