Linde Order Picker Type 149: N20V, N20VI Operating Instructions (User Manual)

Original Illustrated Factory Operating Instructions (User Manual) for Linde Order Picker Type 149.

Original factory manuals for Linde Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck

Covered models:
N20V
N20VI

Format: PDF, 62 Pages
Language: English

Contents:

Description
   Plates and labels
   Technical data
   Technical description

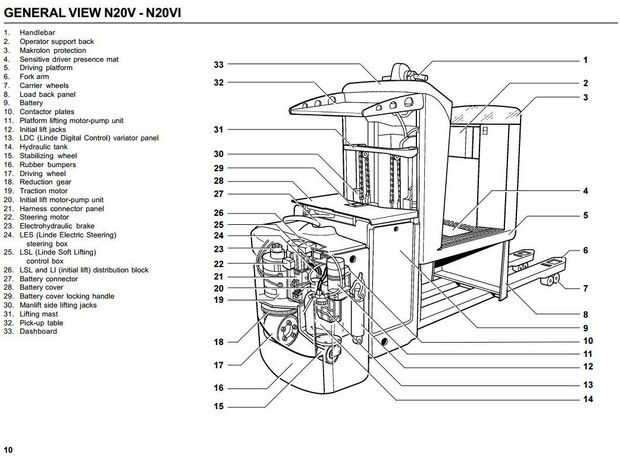

   General view
   Controls
   Indicators
   Running-time meter operation
   Battery discharge meter operation
Startup
Daily checks and work before startup
   Safety rules
   Definition of terms relating to safety
   Use of lubricants
   General periodic verifications of pallet trucks
   Advice for initial use
   Checks prior to initial operation
   Daily checks before use
   Check FOR/BACK and lift/lower controls
   Check electrical steering
   Check braking
   Check emergency stop button
   Check operation of the horn
   Checking the battery charge
   Removing / Replacing the driving platform handling tray
   Opening the battery cover
   Closing the battery cover
   Locking battery
   Connecting/disconnecting battery connector
   Recharching the battery with an external charger
   Checking the condition of the battery cables, terminals and connector
   Checking level of electrolyte and water supplement
   Checking electrolyte specific gravity
   Removing/replacing the battery
   Safety locking of battery
   Removing the battery from the side
Use
   Requirements for use
   Startup
   Emergency stop button
   Directions of travel identification
   Forward/reverse travel
   Direction of travel reversal
   Steering
   Steering direction in forward travel
   Operation with driver off the truck
   Operating the truck on ramps
   Ascending/descending slopes
   Starting on a slope
   Electro-hydraulic braking
   Braking by reversing the direction of motion
   LBC (Linde Brake Control) automatic braking
   Horn control
   Speed limit with fork raised
   Lifting/lowering the driving platform
   Gradually lower and stop the driving platform
   Positioning the platform
   Reading the load diagram
   Picking up a load on the ground
   Transporting a load
   Putting the load down on the floor
   Order preparation
   Truck automatic standby
   Before leaving the truck
   Slinging the truck
   Lifting the pallet truck
   Towing
   Transporting and storing the truck
Maintenance
   General remarks
   Working with driving platform in the raised position
   Standard lifting mast of the man-lift
   Blocking the driving platform in the high position
   Checks and maintenance work after the first 50 hours of service
   Scheduled maintenance and inspection
Maintenance as required
   Cleaning the truck
   Clean and lubricate chains
   Lubricate mast
   Opening motors compartment cover
   Removing the sensitive platform mat
   Handling the sensitive matting of the operating platform
   Cleaning of steering ring and pinions
   Checking tightness of the wheels
   Checking the state of the wheels
   Fixing and adjusting the stabiliser wheel
   Checking the fuses
   Adjusting the battery cover lock
   Checking level of electrolyte and water supplement
   Checking electrolyte s. g.
   Checking the condition of battery connector, terminals and cables
   Cleaning the battery and its compartment
   Battery in sealed case
Maintenance every 500 hours
   Greasing the turntable bearing of the motor unit
   Cleaning of steering ring and pinions
   Checking reduction gear oil level
   Checking hydraulic oil level
   Checking tightness of hydraulic circuit
   Checking condition and fixing of electrical cables and connections
   Checking the condition and fasteners of the driving platform and the chain
   Adjust length of mast chains
   Checking the various hinges
   Cleaning and checking wear of contacts
   Checking and, if necessary, changing traction motor brushes
   Checking and, if necessary, changing steering motor brushes
   Adjusting the electromagnetic brake
Maintenance every 1000 hours
   Checking the high lift pump motor brushes, and replacement if necessary
   Cleaning the hydraulic filter (screen) and  the tank breather
   Replacing the filter cartridge for the L.S.L. distributor block
   Checking mechanical fixing of the components
Maintenance every 2000 hours
   Replacing the hydraulic oil
   Filling the hydraulic oil
   Replacing the reduction gear oil
   Filling the reduction gear oil
   Recommanded lubricants
   Hydraulic system diagrams
   Electrical diagrams
