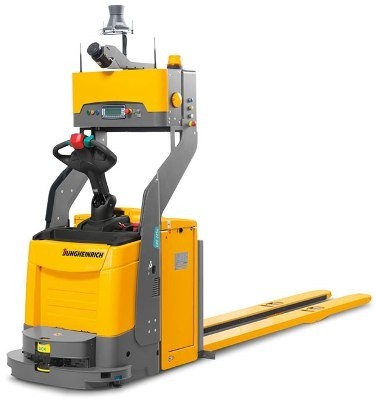

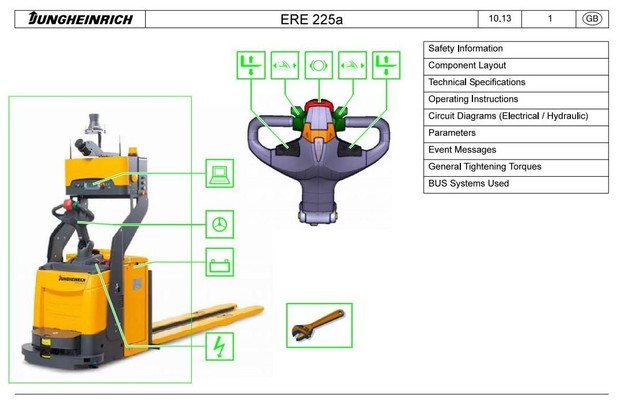

Jungheinrich Electric Pallet Mover ERE 225a (from 10.2013) Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electric Pallet Mover Type ERE.

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

Covered models:
    ERE 225a (from 10.2013)

Language: English
Format: ZIP, Contained Set of PDF Files:
1. Operating Instructions, PDF, 211 Pages
2. Service Manual, PDF, 875 Pages
    Contents:
        Safety Notes
        Component Layout
        Technical Specifications
        Circuit Diagrams (Electrical / Hydraulic)
        Parameters
        Event Messages
        Torques
        BUS systems
        Spring loaded brake 30 Nm
        Code Lock / CanCode
        Jungheinrich ISM
        ISM Online
        ISM Component Assembly
        Connector Layout
        Tiller switch (3S15/7S22)
        AS2412iS Combination Controller
        Travel Direction / Travel Speed Rotary Transmitter
        2.8 kW Drive Motor with Beru Sensor
        Transmission
        Coupling Unit
        PPS Scanner Front Screen Cleaning and Replacement
        Software and Parameter Setting
        47-segment and indicator displays
        S 3000 Laser Scanner Design
        ERE 225a Lift Height Sensor and Bowden Cable
        Maintenance Chart List
        Calibrating the electrical steering
        RSC28 MH Angle Sensor
        AS2412iS Combination Controller
        Tiller Head
        Reflector Survey
        Navigation Computer CVC600
        Transferring the Warehouse Layout to the Truck (replacing the wef file)
        LS5 Laser Scanner
        PPA Run
        Load Sensing Sensor (2B18)
        Fork Tip Sensors
        Distance Sensor (DT50)
        Lift Height Sensor and Bowden Cable
        Travel Direction / Travel Speed Rotary Transmitter
        TIM3XX Laser Scanner
        TIM3XX Laser Scanner Software and Parameter Setting
        S100 Laser Scanner
        S100 Laser Scanner Software and Parameter Setting
        OPT100 Display
        APM-Specific Error Messages
        Beckhoff PLC CX5020
