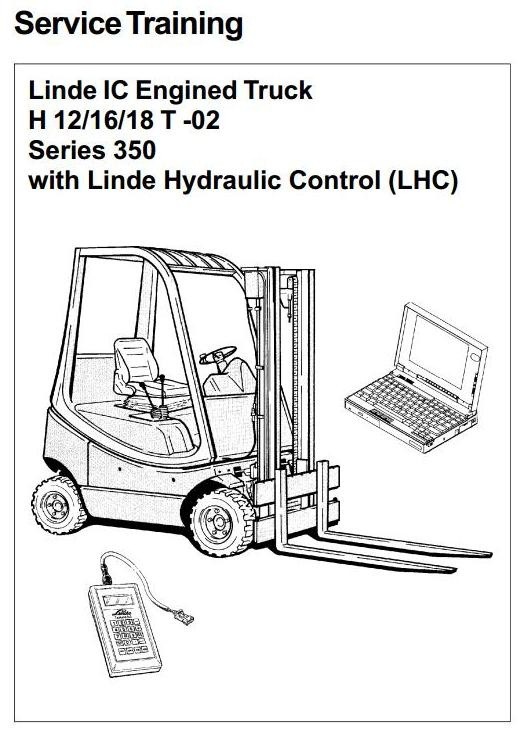

Linde IC-Engined Forklift Truck 350-02 Series: H12, H16, H18 Service Training Manual

Original Illustrated Factory Workshop Service Manual for Linde IC Engined Forklift Truck H-Series Type 350-02.

Original factory manuals for Linde Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck

Covered models:
H12
H16
H18

Format: PDF, 70 Pages
Language: English

Contents:
    Digital electro-hydraulic control (LHC)
        General
    Electronic control of truck speed
    Hydraulic circuit diagram
        View of drive pump
        Electro-hydraulic adjustment
    Wiring diagram (version 02)
        Diagram up to 05/98
        Diagram from 06/98
    Truck Diagnosis
        Working with the Linde Test Module
        Diagnosis with a PC and the Linde Interface Converter
        Linde Interface Converter
        Installation of the Diagnostic software "Test & Set-up"
        Selecting the Linde Program
        Starting the Diagnosis Program "Test & Set-up"
    Linde Diagnosis Program
        Help Function
    Adjustments
        Hydraulic adjustment - begin of pump control
        Pedal stroke adjustment instructions
