Caterpillar Electric Forklift Truck EP10KRT PAC, EP12KRT PAC, EP15KRT PAC Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Caterpillar Electric Forklift Truck EP-Series.

Original factory manuals for Caterpillar Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, wihhout restrictions, contains Searchable Text and bookmarks

Covered models:
    EP10KRT PAC (ETB10A-10001-up)
    EP12KRT PAC (ETB10A-30001-up)
    EP15KRT PAC (ETB10A-60001-up)

Format: PDF, 475 Pages
Language: English

Contents:
GENERAL INFORMATION
    Serial Number Locations, Dimensions, Technical Data

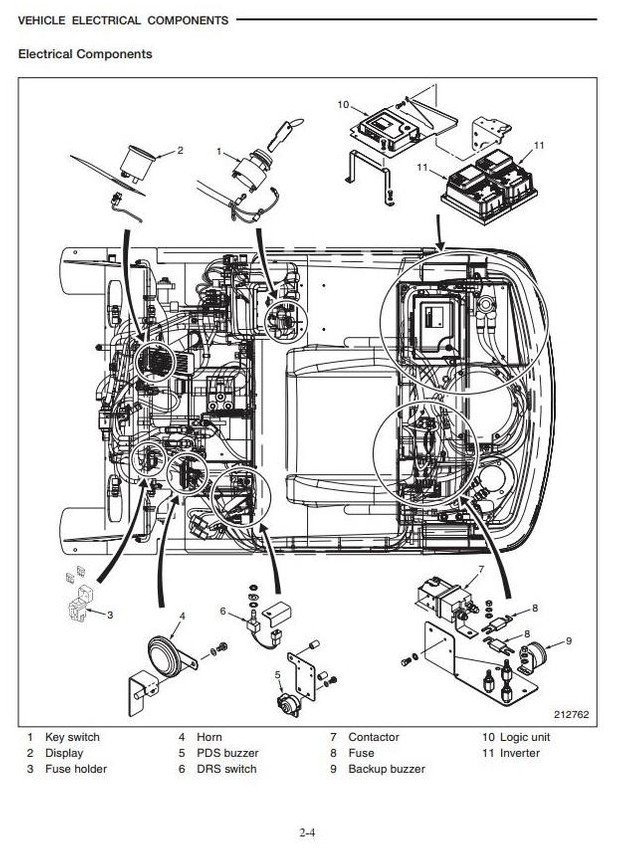

VEHICLE ELECTRICAL COMPONENTS
    Console Box, Key Switch, Lamp Specification Chart
MOTORS
    Motor Installation Positions, Specifications, Structures, Tightening of High-power Cable Terminals,
    Procedures and Key Points for Removal and Installation, etc.
FRONT AXLE
    Structure and Functions, Disassembly and Reassembly of Front Axle Assembly, Service Data
REAR AXLE
    Rear Axle, Rear Wheels, Removal and Installation, Disassembly and Reassembly, Adjustment,
    Troubleshooting, Service Data
BRAKE SYSTEM
    Specifications, Structure and Functions, Procedures and Key Points for Disassembly and Reassembly,
     Inspection and Adjustment, Troubleshooting, Service Data
STEERING SYSTEM
    Specifications, Structure and Functions, Procedures and Key Points for Removal and Installation,
    Steering Control Valve, Hydraulic Circuit, Troubleshooting, Service Data
HYDRAULIC SYSTEM
    Tank, Pump, Control Valve, Lift and Tilt Cylinders, Flow Regulator Valve, Down Safety Valve
MASTS AND FORKS
    Simplex Mast, Duplex Mast, Triplex Mast
SERVICE DATA
    Inspection Standards, Periodic Replacement of Parts, Lubrication Standards, Main Component Weights,
    Tightening Torque for Standard Bolts and Nuts, Special Tools
OPTIONS
    Amber Strobe Kit, Working Lamp Kit, Tire Kit
Controller Service Manual
    CONTROLLER
        System configuration, Outline, External view, Controller Area Network, ACmotor system basics,
        Traction control function, Hydraulic control function, Steering control function, PDS function,
        Display function, Setup Option function, Diagnosis function, History folder function, Other functions,
        Removal and installation, and Basic check
    TROUBLESHOOTING FOR CONTROL CIRCUITS
        Faulty central vehicle monitor system, Faulty diagnosis indication, and Other abnormalities
