Caterpillar Electric Forklift Truck EP16NT, EP18NT, EP20NT Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Caterpillar Electric Forklift Truck EP-Series.

Original factory manuals for Caterpillar Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:

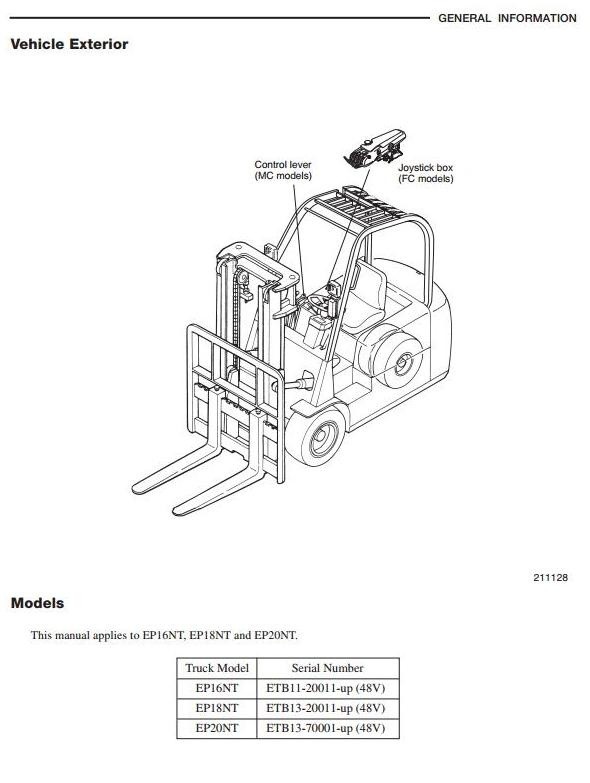

    EP16NT (ETB11-20011-up)
    EP18NT (ETB13-20011-up)
    EP20NT (ETB13-70001-up)

Format: PDF, 478 Pages
Language: English

Contents:
    GENERAL INFORMATION
        Serial number locations, Dimensions, Technical data
    VEHICLE ELECTRICAL COMPONENTS
        Console box, Key switch, Lamp specification chart
    POWER TRAIN
        Procedure and suggestions for removal and installation
    TRANSFER UNITS
        Procedures and suggestions for disassembly and reassembly
    REAR AXLE
        Rear axle, Rear wheels
    BRAKE SYSTEM
        Caliper, Brake pedal, Master cylinder
    STEERING SYSTEM
        Steering control valve
    HYDRAULIC SYSTEM
        Tank, Pump, Control valve, Lift and tilt cylinders, Flow regulator valve, Down safety valve
    MASTS AND FORKS
        Simplex mast, Duplex mast, Triplex mast
    SERVICE DATA
        Inspection standards, Periodic replacement of parts, Lubrication standards, Main component weight,
        Tightening torque for standard bolts and nuts, Special tools
    OPTIONS
        Rearview mirror kit, Backup buzzer kit, Working lamp kit, Tire kit
    CONTROLLER SERVICE MANUAL
        CONTROLLER
            Controller System, Controller Features, Setup Option, Diagnostics, Removal and Installation,
            Basic Check, AC Motor System Basics
        TROUBLESHOOTING FOR CONTROL CIRCUITS
            Faulty Central Vehicle Monitor System, Faulty Diagnostics Indication, or Other Abnormalities
        MOTORS
            Motor Installation Positions, Specifications, Structures, Tightening of High-power Cable Terminals,
            Procedures and Suggestions for Removal and Installation, Procedures and Suggestions for Disassembly
            and Reassembly, Troubleshooting, Service Data
