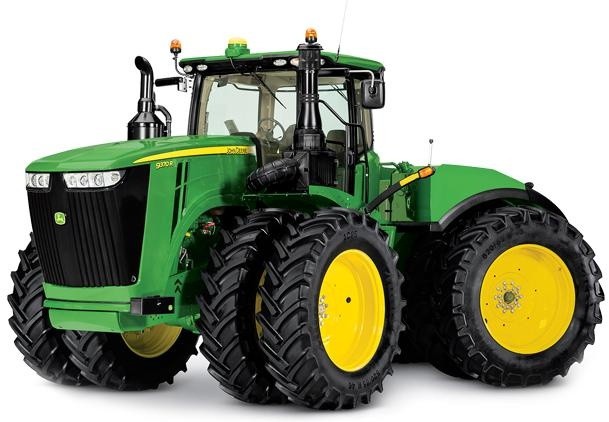

John Deere 9370R,9420R,9470R,9520R,9570R,9620R,9470RX,9520RX,9570RX,9620RX Tractors Repair(TM119519)

Illustrated Factory Repair for John Deere 9R RW (015000 - ) Tractors 9370R, 9420R, 9470R, 9520R, 9570R, 9620R, (9R) (015000-055999) and 9470RX, 9520RX, 9570RX, 9620RX, (9RX) (800000-803999)

This manual contains high quality images, circuit diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 1688 pages

Covered models
  9620R
  9570R
  9520R
  9470R
  9420R
  9370R (S.N. 015000-055999)
  9470RX
  9520RX
  9570RX (S.N. 800000-803999)

Contents:
   Foreword
   Dealer Predelivery Information Form
   General Information
      Safety
      General Information
   Engine
      Component Removal and Installation
      Engine Repair
   Fuel, Air Intake, Exhaust, and Cooling
      Diesel Fuel System
      Air Intake System
      Auxiliary Drive System
      Radiator and Coolers
      Exhaust System
   Electrical
      Connectors
      Charging Circuit
      Starting Circuit
      Relays, Fuses, Solenoids, and Switches
      Monitoring Systems and Sensors
      CommandARM™
      Implement and Accessory Connectors
      Convenience and Accessory Components
   PowerShift Transmission (PST)
      Component Removal and Installation
      In Tractor Repair
      Transmission Repair
      Assemble Transmission
   Drive Train
      Component Removal and Installation
      Drive Shafts
      PTO Clutch
      PTO Clutch Valve
      PTO Drop Box
   Single Reduction Axles
      Component Removal and Installation
      Input Housing
      Differential
      Final Drives
      Brakes
   Double Reduction Axles
      Component Removal and Installation
      Input Housing
      Differential
      Final Drives
      Brakes
   Brakes
      Service Brakes
      Hydraulic Trailer Brake
   Steering
      Steering Column
      Steering
      Steering Cylinders
   Hydraulics
      Component Removal and Installation
      Hydraulic System Repair
      Hydraulic Pump
      Gear Pump Assembly
      Filter Housings and Control Valves
      Hitch Valve, Selective Control Valves, and Couplers
      Rear Hitch
   Miscellaneous
      Hood and Side Panels
   Hinge and Gudgeon
      Hinge
      Gudgeon
   HydraCushion™ Suspension System
      Component Removal and Installation
      Suspension Components
   Cab and Open Operator’s Station
      Component Removal and Installation
      Heating, Ventilating, and Air Conditioning (HVAC)
      ComfortCommand™ Seat
      ActiveSeat™
      Cab Door and Windshield
   Dealer Tools
      Dealer Fabricated Tools
Powered by
