CSE205 Assignment #7




Important:
This is an individual assignment. Please do not collaborate.


No
late assignment will be accepted.


Make
sure that you write every line of your code. Using code written by someone else
will be considered a violation of the academic integrity and will result in a
report to the Dean's office.


Requirements to get full credits in Documentation


  1. The assignment number, your
    name, student ID, lecture number, and a class/file description need to be
    included at the top of each file/class.

  2. A description of each method is
    also needed.

  3. Some additional comments inside
    of methods to explain code that are hard to follow should be written.



You can look at the Java
programs in the text book to see how comments are added to programs.

Minimal Submitted Files

You are required, but
not limited, to turn in the following source files:

Assignment.java (The Assignment
class extends JApplet)

Line.java

WholePanel.java (It extends
JPanel. It needs to be completed.)

You may add more classes
or more methods than they are specified. (You might need them.)

Skills to be Applied:

Swing/AWT

Classes may be
needed:

JApplet, JButton, Container, JPanel, JRadioButton, ButtonGroup, JSplitPane,
Color, Graphics, ActionListener, Point, MouseListener, and ArrayList. You may
use other classes.

Program Description

Suggested
Class Diagram:





Write a Java program
that constructs an Applet.

The Applet (JApplet) of
your program should contain five JRadioButtons which a user can use to select a
color to draw a line, two buttons "Undo" and "Erase", and
one drawing panel where lines can be drawn. Radio buttons and two buttons are
located at the left side of the applet.

(The size of the applet
here is approximately 400 X 400).






A user can choose a
color using radio buttons to draw lines. Until the color is changed, any line
will be drawn with that color. The default color is black.

A user can move a mouse
in the drawing panel and press the mouse where he/she wants to start drawing a
line. The first point that a user clicks will be the starting point of the
line. After a user presses the mouse, a user should "drag" the mouse
until the mouse reaches to a point to determine the ending point of the line.

When a user is dragging
the mouse, the drawing panel should show a line using the starting point and
the current point.




When a user releases the
mouse to finalize the ending of the line, the final line should be shown.




A user can continue to
draw more lines. If two lines are overlapped, the line drawn later will be
shown on the top.




When a user pushes the
"Undo" button, the last drawn line will be erased from the drawing
area. Thus if a user keeps pushing the "Undo" button, eventually all
lines will be erased.

When a user pushes the
"Erase" button, all lines should be erased. If a user pushes the
"Undo" button immediately after pushing the "Erase" button,
then all erased lines should come back (re-drawn) on the drawing panel.

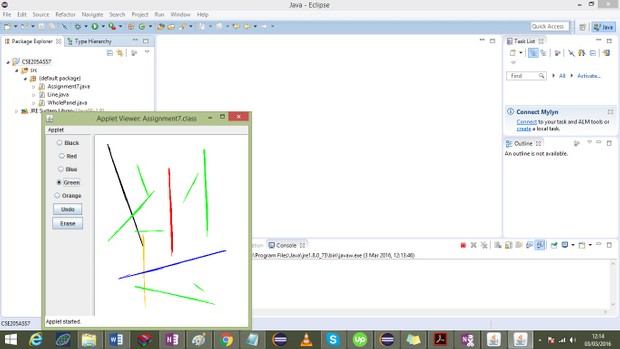

Click here to view the applet

Class description

Line class

The Line class
represents a line to be drawn in the panel. It should contain at least the
following instance variable:




Attribute
name



Attribute
type



Description




x1


int


x-coordinate of the starting point
of the line to be drawn.




y1


int


y-coordinate of the starting point
of the line to be drawn.




x2


int


x-coordinate of the ending point
of the line to be drawn.




y2


int


x-coordinate of the ending point
of the line to be drawn.




color


Color


color of the line.




This class should have a
constructor:

public Line(int x1, int
y1, int x2, int y2, Color color)

where the parameters x1
and y1 are (x1,y1) coordinate of the starting point of the line, x2 and y2 are
(x2,y2) coordinate of the ending point of the line, and color is the color of
the line.

This class should also
contain a method:

public void
draw(Graphics page)

This method should set
the color and draw the line specified by its coordinates (x1,y1) and
(x2,y2).

You can utilize its Graphics object parameter and drawLine method.

CanvasPanel class

The CanvasPanel class
extends JPanel defined in javax.swing package. This is where lines are drawn.
The background of this panel is white. It must contain the following method.

public void
paintComponent(Graphics page)

Using the parameter, the
Graphics object, this method will draw lines with their selected color, and
coordinates. This can be done by calling the draw method of the Line class.
Remember that this method need to call paintComponent method defined in its
parent class. This class can be defined as nested class within the WholePanel
class.

WholePanel class

The WholePanel class
organizes all components in the applet. It extends JPanel defined in
javax.swing package. It should contain at least the following instance
variable:




Attribute
name



Attribute
type



Description




lineList


ArrayList


A list of line objects that are
drawn so far.




This class should have a
constructor:

public WholePanel()

This is where all
components are arranged. Add as many instance variable as you would like to
this class, and initialize them in this constructor. One way to define this
class is to contain an object of CanvasPanel, two buttons "Undo", and
"Erase", and objects of JRadioButton to choose colors.

ButtonListener class

The ButtonListener class
implements ActionListener interface defined in java.awt.event package. It must
implement the following method:

public void
actionPerformed(ActionEvent event)

In this method, the
action to be performed in case one of "Undo", and "Erase"
button is pushed. This listener is used with JButtons.

ColorListener class

The ColorListener class
implements ActionListener interface defined in java.awt.event package. It must
implement the following method:

public void
actionPerformed(ActionEvent event)

In this method, the
color selected by using the JRadioButtons is assigned as a color to be used to
draw a line. This listener is used together with JRadioButtons.

PointListner class

The PointListener class
implements MouseListener interface and MouseMotionListener interface. It must
implement the following method:

public void
mousePressed(MouseEvent event)

When a user presses a
mouse, that point is defined as the starting point of a line to be drawn. You
might call this pressed point's coordinate (x1, y1).

public void mouseDragged
(MouseEvent event)

After a user presses a
mouse and drags it, a line needs to be drawn using the starting point and the
current coordinate as the ending point of the line. You might call this dragged
point's coordinate (x2, y2). As long as a mouse is not released yet
(still dragging), then the line will keep changing.

public void
mouseReleased(MouseEvent event)

When a user releases a
mouse, a line needs to be drawn using the released point as the final point of
the line. You might call this released point (x3, x3).

Other methods from
MouseListener and MouseMotionListener can be left as blank.

Note that these tree
listener classes and CanvasPanel class can be defined as nested classes inside
of the WholePanel class.

How to get started:

Download the following
files and use them as a base of your program:

Assignment.java

WholePanel.java



Step 0: Define Line class in the Line.java file. There are only two methods in
this class, and they are straight forward.



Step 1: Complete WholePanel.java file. Define the mousePressed method to get
the point that a mouse is pointing. Use the point where the mouse is pushed to get
its (x,y)-coordinate.



Step 2: Define the mouseDragged method. At this point, you will have two
coordinate (x1,y1) and (x2,y2), one is a pressed point and the other is a
dragged point. Using these two points, draw a line in the paintComponent
method, then again, call it by calling repaint() method using an object of the
class that has the paintComponent method.



Step 3: Define the mouseReleased method. At this point, you will have the third
coordinate (x3, y3), the point where a mouse is released. Instantiate an object
of Line class, by passing its starting point (x1,y1), its ending point (x3,y3),
and its color. At this point, the color is just black by default.



Since there will be many lines created, we can use an ArrayList called
"lineList" to add an object of Line.



Step 4: Define the paintComponent method to draw all lines in the lineList. You
need a loop to do this.



Step 5: Add the "Undo" and "Erase" buttons, and create
ButtonListener class to implement actionPerformed method. "Undo" will
delete the last line, so you need to do something with the lineList and
re-draw. "Erase" will delete all lines.



Step 6: Add the JRadioButtons to select colors and also create ColorListener to
implement actionPerformed method.



More steps: These are just skeletons. You need to adjust your code to make it
work cleanly.

Grading Policy:


  • submit assignment on time

  • indicate assignment number,
    name, lecture number, and description of each class clearly in each
    submitted java file

  • your program minimally has the
    following functionalities:


    1. 1 point: JRadioButtons,
      "Undo" and "Erase" buttons appear properly at the
      left side of the applet.

    2. 1 point: All drawn lines are
      shown in the applet. (previously drawn lines should not disappear.)

    3. 2 points: A line should appear
      based on the points where a user pressed a mouse.

    4. 1 point: A line is drawn with
      a selected color.

    5. 1 point: "Erase"
      button erases all lines.

    6. 2 points: "Undo"
      button erases the last drawn line. If the last action was to push
      "Erase" button, then all erased lines should come back in the
      drawing panel.
