John Deere 6145J, 6165J, 6180J, 6205J Tractors Diagnosis and Tests Service Manual (TM801419)

Illustrated Factory Diagnosis and Tests Service Manual for John Deere 2WD or MFWD Tractors 6145J, 6165J, 6180J & 6205J

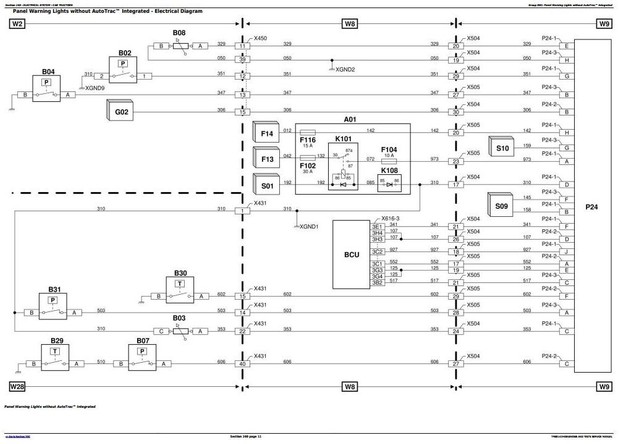

This manual contains high quality images, circuit diagrams, diagnostic procedures to help you to diagnostic, troubleshoot and repair your truck. This document is printable, without restrictions, contains searchable text, bookmarks, crosslinks for easy navigation.

Language: English
Format: PDF, 1741 pages

Covered models:
  6145J
  6165J
  6180J
  6205J

Contents:
   Foreword
   Dealer Predelivery Information Form
   General Information
      Safety
      General Information
   Engine
      Component Removal and Installation
      Engine Repair
   Fuel and Cooling Systems
      Diesel Fuel System
      Air Intake System
      Engine Cooling System
      Coolers and Air Conditioning Condenser
   Electrical
      Connectors
      Wiring Harness Routings
      Charging Circuit
      Starting Circuit
      Relays, Fuses, Solenoids, and Switches
      Monitoring Systems and Sensors
      Armrest Control
      Implement and Accessory Connectors
      Convenience and Accessory Components

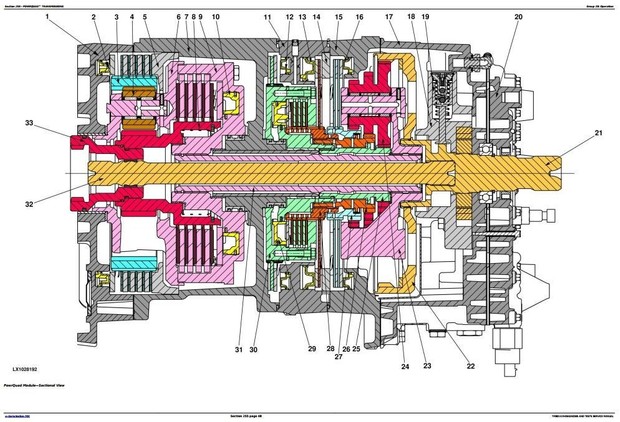

   Power Shift Transmission
      Component Removal and Installation
      Miscellaneous Repair
      Transmission
   AutoPowr/IVT Transmission
      Component Removal and Installation
      General Repair Procedures
      In Tractor Repairs
      Transmission Repair
      Assemble Transmission
   Drive Systems
      Component Removal and Installation
      Rear Differential and Input Quill
      Primary and Secondary Brakes
      Final Drives
      Rear PTO
      Hydraulic Pump Drive
      MFWD Clutch
      Drivelines
   1300 Series MFWD Axles
      Component Removal and Installation
      Final Drives
      Axle Housing
      Differential
      Input Gear Train
      Oscillation
   INDEPENDENT LINK SUSPENSION™ Axle
      Component Removal and Installation
      Controls
      Final Drives
      Drive Shafts
      Differential
      Steering
      Suspension
   1500 Series MFWD Axle
      Component Removal and Installation
      Final Drives
      Axle Housing
      Differential
      Input Gear Train
      Oscillation and Tie Rod

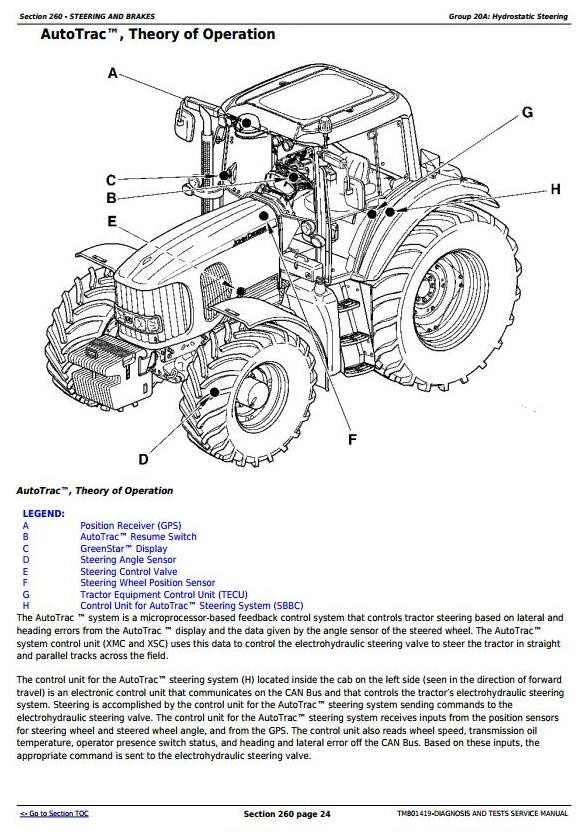

   Steering and Brakes
      Steering Column
      Steering Control Assembly
      Steering Cylinders
      Brake Valve

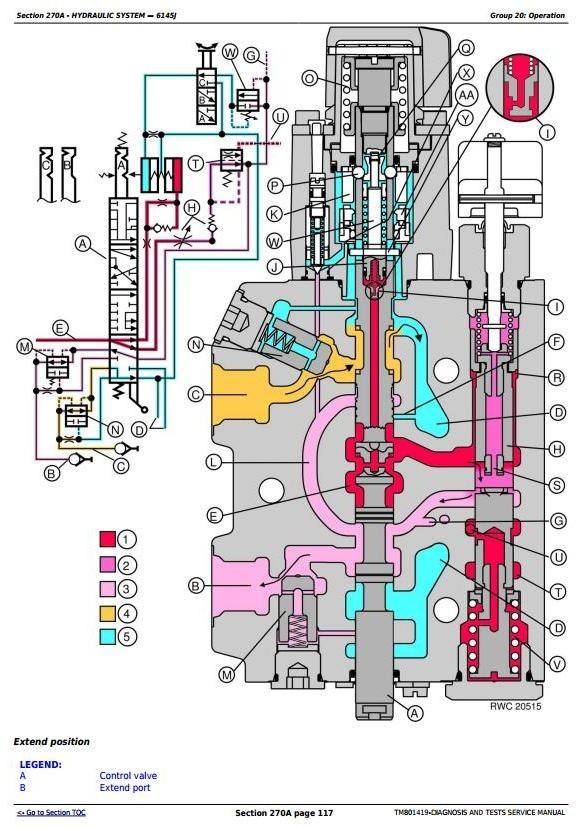

   Hydraulics
      Component Removal and Installation
      Hydraulic System Repair and Cleanup
      Integrated Hydraulic Pump
      Hitch Valve, Selective Control Valves, and Couplers—Early Tractors
      Hitch Valve, Selective Control Valves, and Couplers—CAN Controlled
      Hitch
      Front Hitch
   Miscellaneous
      Hood
      Front Axle (Two-Wheel Drive)
      Wagon And Pick-Up Hitch
      Rear Wheels
   Operator Station
      Component Removal and Installation
      Heating, Ventilating, and Air Conditioning (HVAC)
      Air Conditioning System
      Air Suspension Seat
      ACTIVE SEAT™
      Armrest
      Cab Door and Windshield
   Dealer Tools
      Dealer Fabricated Tools
      Essential or Recommended Tools
