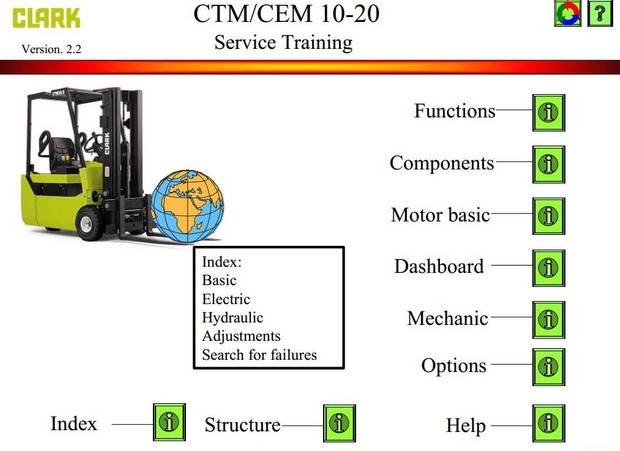

Clark Electric Forklift Truck CEM10, CEM12, CEM16, CEM20, CTM10, CTM12, CTM16, CTM20 Service Manual

Original Illustrated Factory Workshop Service Manual for Clark Electric Forklift Truck Type CEM/CTM.

Original factory manuals for Clark Forclift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, contains Searchable Text

Covered models:
    CEM 10
    CEM 12
    CEM 16
    CEM 20
    CTM 10
    CTM 12
    CTM 16
    CTM 20
Language: English
Format: ZIP, Contained Set of PDF Manuals:

    1. Main  Service manual,  PDF, 214 Pages
    Contents:
        Components
        Functions
            Wiring diagram
                Complete wiring diagram
                Capacity part
                Hydraulic functions
                Supervision functions
                Drive functions
                Power supply
            Diagnose controller
                Lists of failures
                Test-items
                Parameter pump
                Parameter drive
                Plug pump
                Plug drive
                Plug arrangement
            Single functions
                Self-test
                Capacitor charge
                TFR-contactor
                Coil test
                Cornering
            Search for failures
            Harness
        Dashboard
        Mechanic
            Hydraulic Components
            Hydraulic Function
            Hydraulic Plan
            Steering Function
            Steering Components
            Brake Function
            Brake Components
        Motor basic
        Options
    2. Electrical and Hydraulic Diagrams, PDF, 26 pages
    3. Clark Electric Forklift Truck Product Description, PPT, 32 pages
    4. Clark Controller LT201A Description
