Caterpillar Electric Forklift Truck EP20K, EP25K, EP30K, EP35K Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Caterpillar Electric Forklift Truck EP-Series.

Original factory manuals for Caterpillar Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:

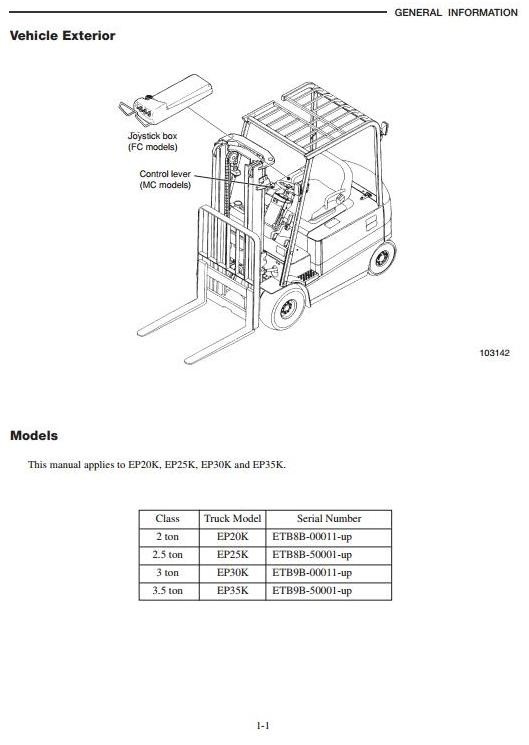

    EP20K (ETB8B-00011-up)
    EP25K (ETB8B-50001-up)
    EP30K (ETB9B-00011-up)
    EP35K (ETB9B-50001-up)

Format: PDF, 493 Pages
Language: English

Contents:
    GENERAL INFORMATION
        Serial Number Locations, Chassis and Mast Model Identification, Dimensions, Technical Data
    VEHICLE ELECTRICAL COMPONENTS
        Electrical Component Locations, Console Box, Key Switch, Lamp Specification Chart, Electrical System of FC
    POWER TRAIN
        General Structure, Removal and Installation
    TRANSFER AND DIFFERENTIAL
        Structure and Functions, Procedures and Suggestions for Disassembly and Reassembly, Service Data
    FRONT AXLE
        Structure and Functions, Disassembly and Reassembly of Front Axle Assembly, Service Data
    REAR AXLE
        Rear Axle, Rear Wheels, Removal and Installation, Disassembly and Reassembly, Adjustment,
        Troubleshooting, Service Data
    BRAKE SYSTEM
        Specifications, Structure and Functions, Procedures and Suggestions for Disassembly and Reassembly,
        Inspection and Adjustment, Troubleshooting, Service Data
    STEERING SYSTEM
        Specifications, Structure and Functions, Procedures and Suggestions for Removal and Installation,
        Steering Gear, Hydraulic Circuit, Troubleshooting, Service Data
    HYDRAULIC SYSTEM
        Tank, Pump, Control Valve, Lift and Tilt Cylinders, Flow Regulator Valve, Down Safety Valve
    MAST AND FORK
        Simplex Mast, Duplex Mast, Triplex Mast
    SERVICE DATA
        Inspection Standards, Periodic Replacement of Parts, Lubrication Standards, Main Component Weights,
        Tightening Torque for Standard Bolts and Nuts, Special Tools
    OPTIONS
        Rearview Mirror Kit, Backup Buzzer Kit, Working Lamp Kit, Tire Kit, Foot Direction Control Kit
    CONTROLLER Service Manual
        CONTROLLER
            Outline, Logic Card, MOS-FET Modules, Operation Outline, Drive System, Hydraulic System, Fail-safe System,
            Malfunction Detection, Fault Data Record, Setting, Self-diagnostics, Display Unit, Removal and Installation,
            Basic Check, AC Motor System Basics, etc.
        TROUBLESHOOTING FOR CONTROL CIRCUITS
            Faulty Central Vehicle Monitor System, Faulty Diagnostics Indication, or Other Abnormalities
        MOTORS
            Motor Installation Positions, Specifications, Structures, Tightening of High-power Cable Terminals,
            Procedures and Suggestions for Removal and Installation, Troubleshooting, Service Data
