a simple interactive paint application

  Assignment   4
The   goal   of   this   assignment   is   to   gain   exposure   to   Java   Swing   and   to   build   a   user   interface   with   a    mix   of   standard   and   custom   widgets.     This   project   will   involve   creating   a   simple   interactive   paint    application.

  1.   [10]   Write   a   Java   application   that   opens   a   UI   window   (hint:   see   the   JFrame   class).

2.   [40]   Add   a   canvas   to   your   window   which   draws   points   when   the   user   clicks   the   canvas   or    drags   the   mouse   on   the   canvas   (hint:   see   the   JPanel   class).     In   parts   3   and   4   you’ll   add   buttons    to   customize   the   current   point   color   and   size,   so   you’ll   need   to   store   this   information   along   with    the   coordinates   for   each   point   (hint:   consider   creating   a   class   to   hold   this   data).

  3.   [20]   Add   at   least   four   buttons   to   your   window   which   allow   the   user   to   select   the   current    point   color.     This   point   color   should   affect   any   points   drawn   from   the   time   the   color   is   selected    until   the   time   that   another   color   is   selected.

4.   [20]   Add   at   least   three   buttons   to   your   window   which   will   allow   the   user   to   select   the   current    point   size.     This   point   size   should   affect   any   points   drawn   from   the   time   the   size   is   selected   until    the   time   that   another   size   is   selected.

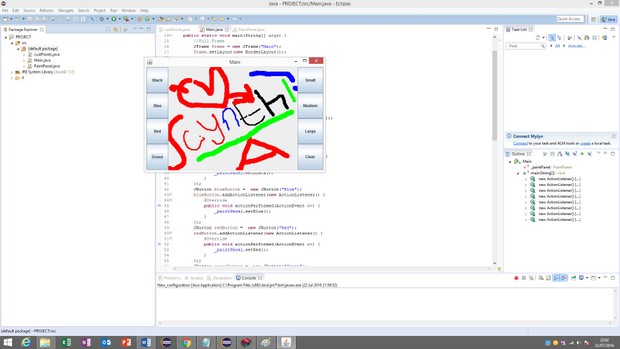

5.   [10]   Add   a   clear   button   to   your   frame   which,   when   clicked,   immediately   clears   anything   that    has   been   drawn   to   your   canvas.    Your   window   should   look   something   like:         Zip   the   Assignment5   folder   in   your   Eclipse   workspace   directory   and   upload   the   .zip   file   to    Blackboard   (see   Assignment   5   link   in   the   Assignments   area).
