Jungheinrich Electric stacker Type ERD 220 Co (from 07.2010) Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electric stacker Type ERD.

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

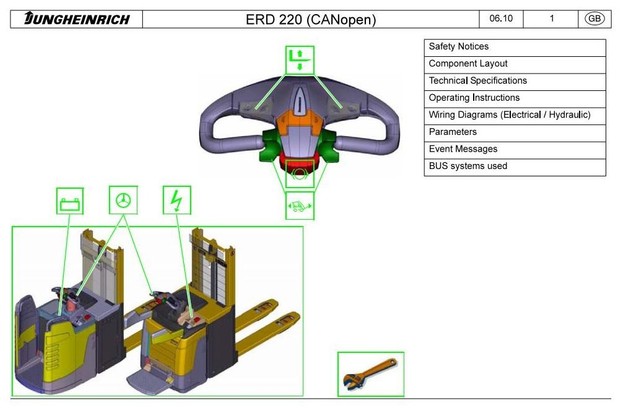

Covered models:
    ERD 220 Co (from 07.2010)

Language: English
Format: ZIP, included Set of PDF manuals
1. Service manual, PDF, 520 Pages
    Contents:
        Safety Notes
        Component Layout
        Technical Specifications
        Operating Instructions
        Circuit Diagrams (Electrical I Hydraulic)
            Wiring diagram index
            ERD 220 fixed platform wiring diagram
            ERD 220 folding platform wiring diagram
            ERD 220 hydraulic diagram - BAA/ hydraulics
            ERD 220 Basic hydraulic diagram - B/W hydraulics
            ERD 220 hydraulic diagram - proportional hydraulics
        ERD 220 Parameters
        Event Messages
        BUS systems
        Brake System
        Electrical System
            CANDIS
            Jungheinrich ISM
            ISM Assembly
            Connector pin assignment
            ELG 2430 On Board Charger
            AS2412iS Combination Controller
        Drive Carriage
        Transmission
        Castor Wheel Adjustment Instructions
        Coupling unit
        "Cushioned Comfort Operator Platform" Retrofit with Conversion Kit 51303998
        Low Level Lifting Cylinder Disassembly
        Determining the Mast Roller Size
        Load Chains (Cleaning, Inspection and Lubrication)
        Maintenance
        Electrics
            RSC28 MH Angle Sensor
            AS2412iS Combination Controller
2. Operating manual, PDF, 193 Pages
