Caterpillar Electric Forklift Truck EP20K PAC, EP25K PAC, EP30K PAC, EP35K PAC Service Manual

Original Illustrated Factory Workshop Service Manual for Caterpillar Electric Forklift Truck EP-Series.

Original factory manuals for Caterpillar Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:
    EP20K PAC (ETB8C-00011-up)
    EP25K PAC (ETB8C-50001-up)
    EP30K PAC (ETB9C-00011-up)
    EP35K PAC (ETB9C-50001-up)

Format: PDF, 486 Pages
Language: English

Contents:
    GENERAL INFORMATION
        Vehicle Exterior, Models, Serial Number Locations, Chassis and Mast Model Identification,
        Dimensions, Technical Data

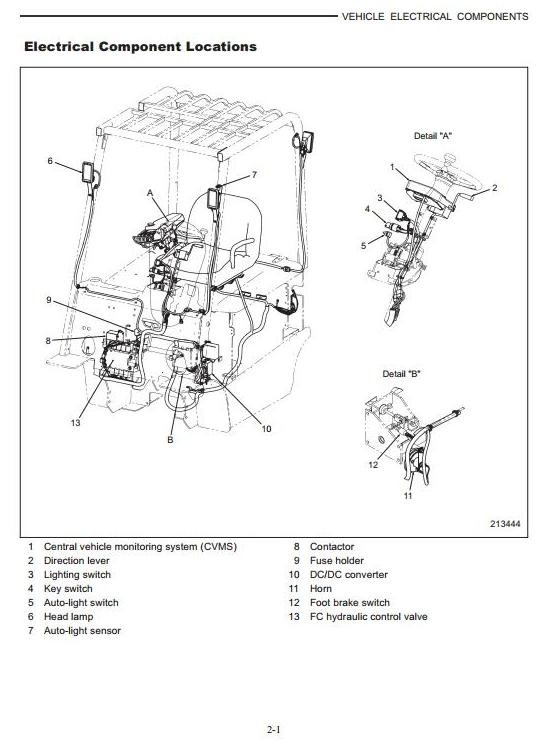

    VEHICLE ELECTRICAL COMPONENTS
        Electrical Component Locations, Console Box, Direction Lever, Accelerator Control, Key Switch,
        Lighting Switch, Fuses, Lamp Specification Chart, Auto-light System, Troubleshooting of Lighting and Horn Systems
    POWER TRAIN
        Electrical Component Locations, Console Box, Direction Lever, Accelerator Control, Key Switch, Lighting Switch,
        Fuses, Lamp Specification Chart, Auto-light System, Troubleshooting of Lighting and Horn Systems
    TRANSFER AND DIFFERENTIAL
        Structure and Functions, Procedures and Suggestions for Disassembly and Reassembly, Service Data
    FRONT AXLE
        Structure and Functions, Disassembly and Reassembly of Front Axle Assembly, Service Data
    REAR AXLE
        Structure, Procedures and Suggestions for Removal and Installation, Procedures and Suggestions
        for Disassembly and Reassembly, Adjustment, Troubleshooting, Service Data
    BRAKE SYSTEM
        Specifications, Structure and Functions, Procedures and Suggestions for Disassembly, Inspection and Reassembly,
        Inspection and Adjustment, Troubleshooting, Service Data
    STEERING SYSTEM
        Specifications, Structure and Functions, Procedures and Suggestions for Disassembly, Inspection and Reassembly,
        Inspection and Adjustment, Troubleshooting, Service Data
    HYDRAULIC SYSTEM
        Specifications, Finger-tip Control Type, Mechanical Control Type, Troubleshooting, Service Data
    MAST AND FORK
        Structure and Functions, Removal and Installation, Disassembly and Reassembly,
        Inspection and Adjustment, Troubleshooting, Service Data
    SERVICE DATA
        Inspection Standards, Periodic Replacement of Parts, Lubrication Standards, Main Component Weights,
        Tightening Torque for Standard Bolts and Nuts, Special Tool Table
    OPTIONS
        Backup Buzzer Kit, Tire Kit (Non Mark), Foot Direction Control Kit
    CONTROLLER SERVICE MANUAL
        CONTROLLER
            Outline, Logic Card, MOS-FET Modules, Operation Outline, Drive System, Hydraulic System, Fail-safe System,
            Malfunction Detection, Fault Data Record, Setting, Self-diagnostics, Display Unit, Removal and Installation,
            Basic Check, AC Motor System Basics, etc.
        TROUBLESHOOTING FOR CONTROL CIRCUITS
            Faulty Central Vehicle Monitor System, Faulty Diagnostics Indication, or Other Abnormalities
        MOTORS
            Motor Installation Positions, Specifications, Structures, Tightening of High-power Cable Terminals,
            Procedures and Suggestions for Removal and Installation, Troubleshooting, Service Data
