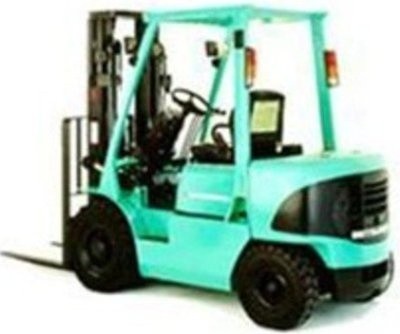

Mitsubishi Diesel Forklift Truck FD15K, FD18K, FD20K, FD25K, FD30K, FD35K Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Mitsubishi Diesel Forklift Truck FD-K Series.

Original factory manuals for Mitsubishi Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks

Covered models:
    FD15K (EF16B-65001-up)
    FD18K (EF16B-85001-up)
    FD20K (EF18B-15001-up)
    FD25K (EF18B-65001-up)
    FD30K (EF14C-45001-up)
    FD35K (EF14C-65001-up)

Language: English
Format: ZIP, Contained Set Of PDF Manuals:

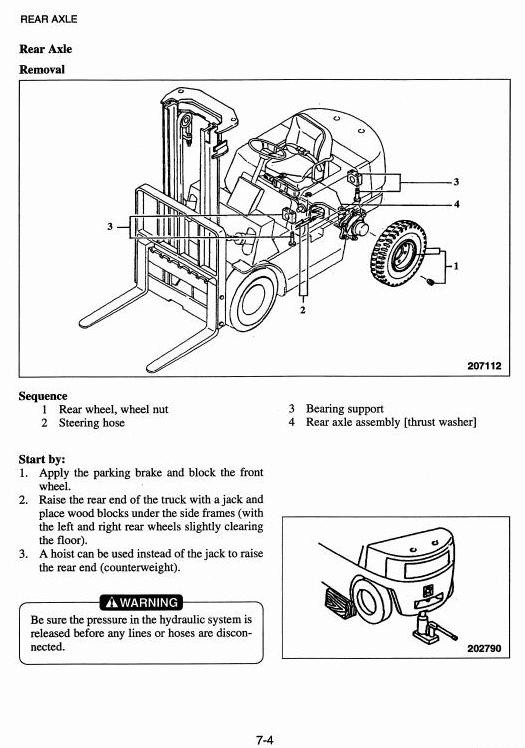

1. Chassis and Mast Service manual (99719-53120), PDF, 383 Pages
    Contents:
        GENERAL INFORMATION
            Vehicle Exterior, Models, Serial Number Locations, Dimensions, Technical Data
        COOLING SYSTEM
            Fan Belt Removal, Fan Belt Inspection, Fan Belt Adjustment
        ELECTRICAL SYSTEM
            Console Box, Combination Meter, Starter Switch (with Anti-restart Lock),
            Lighting Switch, Fuse Box, Spare Terminals, Battery Maintenance, Light Bulb
            Specifications, Electrical System Schematics
        POWER TRAIN
            Engine and Transmission
        POWERSHIFT TRANSMISSION
            Hydraulic Circuit, Control, Transmission Assembly, Pump Assembly, Control
            Valve, Testing Hydraulic Pressure, Adjusting Inching Pedal, Testing Clutch
            Valve, 10-m (33-ft) Start Acceleration Test
        FRONT AXLE AND REDUCTION DIFFERENTIAL
            Front Wheels, Front Axle and Reduction Differential, Tooth Contact Patterns
            and Adjustment
        REAR AXLE
            Rear Axle, Steering Cylinder, Rear Wheels, Rear Axle, Steering Cylinder,
            Minimum Turning Radius Adjustment
        BRAKE SYSTEM
            Automatic Adjusting Device, Brake Pedal and Assembly, Master Cylinder,
            Wheel Brakes, Wheel Cylinders, Brake Pedal Adjustment, Bleeding Air Out of
            the Brake Fluid Line, Brake Test
        STEERING SYSTEM
            Steering System, Steering Control Valve, Tilt Steering Assembly
        HYDRAULIC SYSTEM
            Hydraulic Line, Hydraulic Tank, Hydraulic Pump, Control Valve, Lift and Tilt
            Cylinders, Down Safety Valve
        MAST AND FORK
            Simplex Mast, Duplex Mast, Triplex Mast
        SERVICE DATA
            Tightening Torques for Standard Bolts and Nuts, Periodic Replacement Parts,
            Fuel and Lubricant Specifications, Recommended Brands of Lubricants, Refill
            Capacities (Approximate)
        OPTIONS
            Plate Fin Type Radiator Kit, Fan Speed Up Kit, Radiator Coolant Level, Warning
            Kit, Torque Converter Oil Filter Kit, Radiator Net Kit, Combination Lamp and Turn
            Signal Switch Kit, Back Buzzer Kit, etc.
2. Michel Cabin Schematic, PDF, 4 Pages
3. S4S Diesel Engine Service Manual, PDF, 182 Pages
    Contents:
        General
        Service data
        Service tools
        Determination of overhaul
        Disassembly ofbasic engine
        Inspection and repair of basic engine
        Reassembly of basic engine
        Fuel system
        Lubrication system
        Cooling system
        Inlet and exhaust systems
        Electrical system
        Adjustment and operation
4. S4Q2 Diesel Engine Service Manual, PDF, 152 Pages
    Contents:
        General
        Service data
        Service tools
        Determination of overhaul
        Disassembly ofbasic engine
        Inspection and repair of basic
        engine
        Reassembly of basic engine
        Fuel system
        Lubrication system
        Cooling system
        Inlet and exhaust systems
        Electrical system
        Adjustment and operation
