# Project 3 – The banker’s algorithm

PROJECT 3*********************************************

The source codes: Bank.java BankImpl.java TestHardness.java

can be compiled and run from the command line

(or)

can be copy pasted (or imported) into an IDE, under a new project

(or)

the NetBeans project (Project3) can be importedinto NetBeans directly.

NOTE: Make sure that infile.txt is containedwithin the same folder as your source codesto ensure that the file will be found atruntime.

*********************************************

Note: Please rename Bank.txt, BankImpl.txt,

and TestHardness.txt to Bank.java, BankImpl.java and TestHardness.java.

For this project, we will complete Project Banker’s

algorithm as it is described

Banker’s algorithm:

The resource-allocation-graph algorithm is

not applicable to a resource allocation system with multiple instances of each resource type.The deadlock avoidance

algorithm that we describe next is applicable to such a system but is less

efﬁcient than the resource-allocation graph scheme. This algorithm is commonly

known as the banker’s algorithm. The name was chosen because the algorithm

could be used in a banking system to ensure that the bank never allocated its

available cash in such a way that it could no longer satisfy the needs of all

its customers. When a new process enters the system, it must declare the

maximum number of instances of each resource type that it may need. This number

may not exceed the total number of resources in the system. When a user

requests a set of resources, the system must determine whether the allocation

of these resources will leave the system in a safe state. If it will, the

resources are allocated; otherwise, the process must wait until some other

process releases enough resources. Several data structures must be maintained

to implement the banker’s algorithm. These data structures encode the state of

the resource-allocation system. We need the following data structures, where n

is the number of processes in the system and m is the number of resource types:

•

Available . A vector of length m indicates the number of available resources of each type.

If

Available [j] equals k, then k instances of resource type Rj are available.

• Max. Ann × m matrix deﬁnes the maximum

demand of each process.

If Max[i][j] equals k, then process Pi may

request at most k instances of resource type Rj.

•

Allocation.An n×m matrix deﬁnes the number of resources of each type

currently allocated to each process.

If Allocation [i] [j] equals k, then process Pi

is currently allocated k instances of resource type Rj.

Deadlocks • Need. Ann × m matrix indicates the

remaining resource need of each process. If Need [i] [j] equals k,then process Pi

may need k more instances of resource type Rj to complete its task. Note that

Need [i] [j] equals Max[i] [j] −Allocation[i][j]. These data structures vary

overtime in both size and value. To simplify the presentation of the banker’s

algorithm, we next establish some notation. Let X and Y be vectors of length n.

We say that X ≤ Y if and only if X[i] ≤ Y[i] for alli = 1, 2, ..., n. For

example, if X = (1,7,3,2) and Y = (0,3,2,1), then Y≤X. In addition, Y < X if

Y≤X and Y=X. We can treat each row in the matrices Allocation and Need as

vectors and refer to them as Allocation and Need. The vector Allocation

speciﬁes the resources currently allocated to process Pi; the vector Need

speciﬁes the additional resources that process Pi may still request to complete

its task.

1 Safety Algorithm We can now present the

algorithm for ﬁnding out whether or not a system is in a safe state. This

algorithm can be described as follows:

1. Let Work and Finish be vectors of length

m and n, respectively. Initialize Work = Available and Finish[i]=false for i =

0, 1, ..., n−1. 2. Find an index i such that both a. Finish[i] ==false b. Need

≤Work If no such i exists, go to step 4. 3. Work = Work + Allocation

Finish[i]=true Go to step 2. 4. If Finish[i] ==true for all i, then the system

is in a safe state. This algorithm may require an order of m×n2

operations to determine whether a state is safe.

2 Resource-Request Algorithm

Next,we describe the algorithm for determining whether requests can be safely granted.

Let Request be the request vector for process Pi. If Request [j] == k, then process Pi

wants k instances of resource type Rj. When are quest for resources is made by

process Pi, the following actions are taken:

1. If Request

≤ Need,go to step 2 . Otherwise,raise an error condition,since the process has

exceed edits maximum claim. 2. If Request ≤ Available, go to step 3. Otherwise,

Pi must wait, since the resources are not available.

3. Have the system pretend to have

allocated the requested resources to process Pi by modifying the state as

follows:

Available= Available- Request; Allocation

= Allocation + Request; Need = Need - Request;

If the resulting resource-allocation state

is safe, the transaction is completed,and process Pi

is allocated its resources.However,if then ew state is unsafe, then Pi must wait for

Request, and the old resource-allocation state is restored.

3.3 An Illustrative Example To illustrate

the use of the banker’s algorithm, consider a system with ﬁve processes P0

through P4 and three resource types A,B,and C. Resource type A has ten instances,

resource type B has ﬁve instances, and resource type C has

seven instances.Suppose that,at time T0,the following snap shot of the system has been

taken:

Allocation Max Available A B C A B C A B C

P0 0 1 0 7 5 3 3 3 2 P1 2 0 0 3 2 2 P2 3 0 2 9 0 2 P3 2 1 1 2 2 2 P4 0 0 2 4 3

3

The content of the matrix Need is deﬁned to

be Max − Allocation and is as follows:

Need ABC P0 743 P1 122 P2 600 P3 011 P4 431

We claim that the system is currently in a

safe state. Indeed, the sequence <P1, P3, P4, P2, P0 satisﬁes the safety

criteria. Suppose now that process P1 requests one additional instance of

resource type A and two instances of resource type C, so Request1 = (1,0,2). To

decide whether this request can be immediately granted, we ﬁrst check that

Request1 ≤ Available—that is, that (1,0,2) ≤ (3,3,2), which is true. We then

pretend that this request has been fulﬁlled, and we arrive at the following new

state:

Allocation Need Available A B C A B C A B C

P0 0 1 0 7 4 3 2 3 0 P1 3 0 2 0 2 0 P2 3 0 2 6 0 0 P3 2 1 1 0 1 1 P4 0 0 2 4 3

1

We must determine whether this new system

state is safe. To do so, we execute our safety algorithm and ﬁnd that the

sequence <P1, P3, P4, P0, P2 satisﬁes the safety requirement. Hence, we

can immediately grant the request of process P1. You should be able

to see,however, that when the system is in this state,a request for(3,3,0)by P4

cannot be granted,since the resources are not available. Furthermore, a request for

(0,2,0) by P0 cannot be granted, even though the resource sare available, since

the resulting state is unsafe. We leave it as a programming exercise for

students to implement the banker’s algorithm.

1.Read the project

description thoroughly before you do anything else.

Project description:

The Bank

The bank will employ the strategy outlined

earlier, whereby it will consider requests from n customers for m resources.

The bank will keep track of the resources using the following data structures:

int numberOfCustomers; // the number of

customers int numberOfResources; // the number of resources

int[] available; // the available amount of

each resource int[] [] maximum; // the maximum demand of each customer int [] []

allocation; // the amount currently allocated // to each customer int[ ] [] need;

// the remaining needs of each customer

The

implementation of this interface will require adding a constructor that is

passed the number of resources initially available. For example, suppose we

have three resource types with 10, 5, and 7 resources initially available. In

this case, we can create an implementation of the interface using the following

technique:

Bank the Bank = new BankImpl(10,5,7);

The bank will grant a request if the

request satisﬁes the safety algorithm outlined . If granting the request does not

leave the system in a safe state, the request is denied.

Testing Your Implementation

You can use the ﬁle TestHarness.java, which

is available on Wiley Plus, to test your implementation of the Bank interface.

This program expects the implementation of the Bank interface to be

named BankImpl and requires an input ﬁle containing the maximum demand of each

resource type for each customer.For example,if there are ﬁve customers and three resource types,the

input ﬁle might appear as follows:

7,5,3 3,2,2 9,0,2 2,2,2 4,3,3

This indicates that the maximum demand for customer0 is 7,5,3;for customer1, 3,2,2; and

so forth. Since each line of the input ﬁle represents a separate

public interface Bank {/** * Add a customer

* customerNumber - the number of the customer * maximumDemand - the maximum

demand for this customer */ public void addCustomer (int customerNum, int[]

maximumDemand);

/** * Output the value of available,

maximum, * allocation, and need */ public void getState();

/** * Request resources * customerNumber -

the customer requesting resources * request - the resources being requested */

public boolean request Resources(int customerNumber, int[] request);

/** * Release resources * customerNumber -

the customer releasing resources * release - the resources being released */

public void release Resources(int customer Number, int[] release);

}

customer, the addCustomer() method is to be

invoked as each line is read in, initializing the value of maximum for each customer.(In the above example,the

value of maximum [0] is initialized to 7,5,3 for customer 0;maximum[1][]is initialized

to 3,2,2; and so forth.) Furthermore, TestHarness.java also requires the

initial number of resources available in the bank. For example, if there are

initially 10, 5, and 7 resources available, we invoke TestHarness.java as

follows:

java Test Harness infile.txt 10 5 7

where infile.txt refers to a ﬁle containing

the maximum demand for each customer followed by the number of resources

initially available. The

available array will be initialized to the values passed on the command line.

2.Your job is to fill out

the BankImpl.java file with hints given in the code. Please periodically test your functions as

best as you can.

0.

Once things start working, you

can use the Test Harness program that is included. To run it, type

Java TestHarness

infile.txt 10 5 7

Or

Create a new project

configuration from run à set project configuration, and set arguments to be

If you input * and press

Enter, it will tell you the current state of your bank (as output by your

getState() method). If you type

RQ 0 2 2 2

then customer 0 will

request two of each available resource.

Likewise,

RL 0 2 2 2

will make customer 0

release two of each resource.

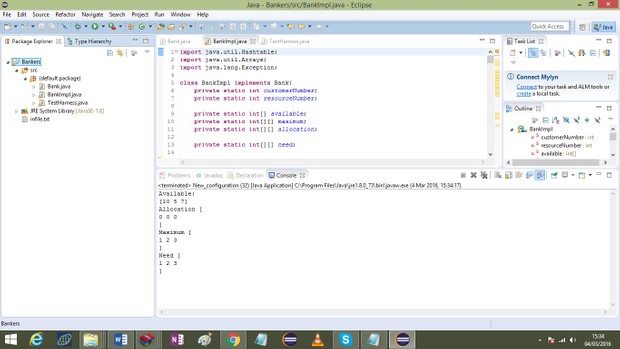

Here is an example of my

output:

run:

*

Available

[10 5 7]

Allocation

[0 0 0]

[0 0 0]

[0 0 0]

[0 0 0]

[0 0 0]

Max

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 3 3]

Need

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 3 3]

RQ 4 2 3 5

*2*

*3*

*5*

Customer # 4 requesting 2 3 5 Available =

10 5

7 Approved

*

Available

[8 2

2]

Allocation

[0 0

0]

[0 0

0]

[0 0

0]

[0 0

0]

[2 3

5]

Max

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[4 3

3]

Need

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[2 0

-2]

RL 4 2 2 2

*2*

*2*

*2*

Customer # 4 releasing 2 2 2 Available =

10 4

4 Allocated = [0 1

3 ]*

Available

[10 4 4]

Allocation

[0 0 0]

[0 0 0]

[0 0 0]

[0 0 0]

[0 1 3]

Max

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 3 3]

Need

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 2 0]

RQ 0 1 3 2

*1*

*3*

*2*

Customer # 0 requesting 1 3 2 Available =

10 4

4 Denied

*

Available

[10

4 4]

Allocation

[0 0

0]

[0 0

0]

[0 0

0]

[0 0

0]

[0 1

3]

Max

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[4 3

3]

Need

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[4 4

6]

The source codes: Bank.java BankImpl.java TestHardness.java

can be compiled and run from the command line

(or)

can be copy pasted (or imported) into an IDE, under a new project

(or)

the NetBeans project (Project3) can be importedinto NetBeans directly.

NOTE: Make sure that infile.txt is containedwithin the same folder as your source codesto ensure that the file will be found atruntime.

*********************************************

Note: Please rename Bank.txt, BankImpl.txt,

and TestHardness.txt to Bank.java, BankImpl.java and TestHardness.java.

For this project, we will complete Project Banker’s

algorithm as it is described

Banker’s algorithm:

The resource-allocation-graph algorithm is

not applicable to a resource allocation system with multiple instances of each resource type.The deadlock avoidance

algorithm that we describe next is applicable to such a system but is less

efﬁcient than the resource-allocation graph scheme. This algorithm is commonly

known as the banker’s algorithm. The name was chosen because the algorithm

could be used in a banking system to ensure that the bank never allocated its

available cash in such a way that it could no longer satisfy the needs of all

its customers. When a new process enters the system, it must declare the

maximum number of instances of each resource type that it may need. This number

may not exceed the total number of resources in the system. When a user

requests a set of resources, the system must determine whether the allocation

of these resources will leave the system in a safe state. If it will, the

resources are allocated; otherwise, the process must wait until some other

process releases enough resources. Several data structures must be maintained

to implement the banker’s algorithm. These data structures encode the state of

the resource-allocation system. We need the following data structures, where n

is the number of processes in the system and m is the number of resource types:

•

Available . A vector of length m indicates the number of available resources of each type.

If

Available [j] equals k, then k instances of resource type Rj are available.

• Max. Ann × m matrix deﬁnes the maximum

demand of each process.

If Max[i][j] equals k, then process Pi may

request at most k instances of resource type Rj.

•

Allocation.An n×m matrix deﬁnes the number of resources of each type

currently allocated to each process.

If Allocation [i] [j] equals k, then process Pi

is currently allocated k instances of resource type Rj.

Deadlocks • Need. Ann × m matrix indicates the

remaining resource need of each process. If Need [i] [j] equals k,then process Pi

may need k more instances of resource type Rj to complete its task. Note that

Need [i] [j] equals Max[i] [j] −Allocation[i][j]. These data structures vary

overtime in both size and value. To simplify the presentation of the banker’s

algorithm, we next establish some notation. Let X and Y be vectors of length n.

We say that X ≤ Y if and only if X[i] ≤ Y[i] for alli = 1, 2, ..., n. For

example, if X = (1,7,3,2) and Y = (0,3,2,1), then Y≤X. In addition, Y < X if

Y≤X and Y=X. We can treat each row in the matrices Allocation and Need as

vectors and refer to them as Allocation and Need. The vector Allocation

speciﬁes the resources currently allocated to process Pi; the vector Need

speciﬁes the additional resources that process Pi may still request to complete

its task.

1 Safety Algorithm We can now present the

algorithm for ﬁnding out whether or not a system is in a safe state. This

algorithm can be described as follows:

1. Let Work and Finish be vectors of length

m and n, respectively. Initialize Work = Available and Finish[i]=false for i =

0, 1, ..., n−1. 2. Find an index i such that both a. Finish[i] ==false b. Need

≤Work If no such i exists, go to step 4. 3. Work = Work + Allocation

Finish[i]=true Go to step 2. 4. If Finish[i] ==true for all i, then the system

is in a safe state. This algorithm may require an order of m×n2

operations to determine whether a state is safe.

2 Resource-Request Algorithm

Next,we describe the algorithm for determining whether requests can be safely granted.

Let Request be the request vector for process Pi. If Request [j] == k, then process Pi

wants k instances of resource type Rj. When are quest for resources is made by

process Pi, the following actions are taken:

1. If Request

≤ Need,go to step 2 . Otherwise,raise an error condition,since the process has

exceed edits maximum claim. 2. If Request ≤ Available, go to step 3. Otherwise,

Pi must wait, since the resources are not available.

3. Have the system pretend to have

allocated the requested resources to process Pi by modifying the state as

follows:

Available= Available- Request; Allocation

= Allocation + Request; Need = Need - Request;

If the resulting resource-allocation state

is safe, the transaction is completed,and process Pi

is allocated its resources.However,if then ew state is unsafe, then Pi must wait for

Request, and the old resource-allocation state is restored.

3.3 An Illustrative Example To illustrate

the use of the banker’s algorithm, consider a system with ﬁve processes P0

through P4 and three resource types A,B,and C. Resource type A has ten instances,

resource type B has ﬁve instances, and resource type C has

seven instances.Suppose that,at time T0,the following snap shot of the system has been

taken:

Allocation Max Available A B C A B C A B C

P0 0 1 0 7 5 3 3 3 2 P1 2 0 0 3 2 2 P2 3 0 2 9 0 2 P3 2 1 1 2 2 2 P4 0 0 2 4 3

3

The content of the matrix Need is deﬁned to

be Max − Allocation and is as follows:

Need ABC P0 743 P1 122 P2 600 P3 011 P4 431

We claim that the system is currently in a

safe state. Indeed, the sequence <P1, P3, P4, P2, P0 satisﬁes the safety

criteria. Suppose now that process P1 requests one additional instance of

resource type A and two instances of resource type C, so Request1 = (1,0,2). To

decide whether this request can be immediately granted, we ﬁrst check that

Request1 ≤ Available—that is, that (1,0,2) ≤ (3,3,2), which is true. We then

pretend that this request has been fulﬁlled, and we arrive at the following new

state:

Allocation Need Available A B C A B C A B C

P0 0 1 0 7 4 3 2 3 0 P1 3 0 2 0 2 0 P2 3 0 2 6 0 0 P3 2 1 1 0 1 1 P4 0 0 2 4 3

1

We must determine whether this new system

state is safe. To do so, we execute our safety algorithm and ﬁnd that the

sequence <P1, P3, P4, P0, P2 satisﬁes the safety requirement. Hence, we

can immediately grant the request of process P1. You should be able

to see,however, that when the system is in this state,a request for(3,3,0)by P4

cannot be granted,since the resources are not available. Furthermore, a request for

(0,2,0) by P0 cannot be granted, even though the resource sare available, since

the resulting state is unsafe. We leave it as a programming exercise for

students to implement the banker’s algorithm.

1.Read the project

description thoroughly before you do anything else.

Project description:

The Bank

The bank will employ the strategy outlined

earlier, whereby it will consider requests from n customers for m resources.

The bank will keep track of the resources using the following data structures:

int numberOfCustomers; // the number of

customers int numberOfResources; // the number of resources

int[] available; // the available amount of

each resource int[] [] maximum; // the maximum demand of each customer int [] []

allocation; // the amount currently allocated // to each customer int[ ] [] need;

// the remaining needs of each customer

The

implementation of this interface will require adding a constructor that is

passed the number of resources initially available. For example, suppose we

have three resource types with 10, 5, and 7 resources initially available. In

this case, we can create an implementation of the interface using the following

technique:

Bank the Bank = new BankImpl(10,5,7);

The bank will grant a request if the

request satisﬁes the safety algorithm outlined . If granting the request does not

leave the system in a safe state, the request is denied.

Testing Your Implementation

You can use the ﬁle TestHarness.java, which

is available on Wiley Plus, to test your implementation of the Bank interface.

This program expects the implementation of the Bank interface to be

named BankImpl and requires an input ﬁle containing the maximum demand of each

resource type for each customer.For example,if there are ﬁve customers and three resource types,the

input ﬁle might appear as follows:

7,5,3 3,2,2 9,0,2 2,2,2 4,3,3

This indicates that the maximum demand for customer0 is 7,5,3;for customer1, 3,2,2; and

so forth. Since each line of the input ﬁle represents a separate

public interface Bank {/** * Add a customer

* customerNumber - the number of the customer * maximumDemand - the maximum

demand for this customer */ public void addCustomer (int customerNum, int[]

maximumDemand);

/** * Output the value of available,

maximum, * allocation, and need */ public void getState();

/** * Request resources * customerNumber -

the customer requesting resources * request - the resources being requested */

public boolean request Resources(int customerNumber, int[] request);

/** * Release resources * customerNumber -

the customer releasing resources * release - the resources being released */

public void release Resources(int customer Number, int[] release);

}

customer, the addCustomer() method is to be

invoked as each line is read in, initializing the value of maximum for each customer.(In the above example,the

value of maximum [0] is initialized to 7,5,3 for customer 0;maximum[1][]is initialized

to 3,2,2; and so forth.) Furthermore, TestHarness.java also requires the

initial number of resources available in the bank. For example, if there are

initially 10, 5, and 7 resources available, we invoke TestHarness.java as

follows:

java Test Harness infile.txt 10 5 7

where infile.txt refers to a ﬁle containing

the maximum demand for each customer followed by the number of resources

initially available. The

available array will be initialized to the values passed on the command line.

2.Your job is to fill out

the BankImpl.java file with hints given in the code. Please periodically test your functions as

best as you can.

0.

Once things start working, you

can use the Test Harness program that is included. To run it, type

Java TestHarness

infile.txt 10 5 7

Or

Create a new project

configuration from run à set project configuration, and set arguments to be

**infile.txt 10 5 7**.If you input * and press

Enter, it will tell you the current state of your bank (as output by your

getState() method). If you type

RQ 0 2 2 2

then customer 0 will

request two of each available resource.

Likewise,

RL 0 2 2 2

will make customer 0

release two of each resource.

Here is an example of my

output:

run:

*

Available

[10 5 7]

Allocation

[0 0 0]

[0 0 0]

[0 0 0]

[0 0 0]

[0 0 0]

Max

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 3 3]

Need

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 3 3]

RQ 4 2 3 5

*2*

*3*

*5*

Customer # 4 requesting 2 3 5 Available =

10 5

7 Approved

*

Available

[8 2

2]

Allocation

[0 0

0]

[0 0

0]

[0 0

0]

[0 0

0]

[2 3

5]

Max

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[4 3

3]

Need

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[2 0

-2]

RL 4 2 2 2

*2*

*2*

*2*

Customer # 4 releasing 2 2 2 Available =

10 4

4 Allocated = [0 1

3 ]*

Available

[10 4 4]

Allocation

[0 0 0]

[0 0 0]

[0 0 0]

[0 0 0]

[0 1 3]

Max

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 3 3]

Need

[7 5 3]

[3 2 2]

[9 0 2]

[2 2 2]

[4 2 0]

RQ 0 1 3 2

*1*

*3*

*2*

Customer # 0 requesting 1 3 2 Available =

10 4

4 Denied

*

Available

[10

4 4]

Allocation

[0 0

0]

[0 0

0]

[0 0

0]

[0 0

0]

[0 1

3]

Max

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[4 3

3]

Need

[7 5

3]

[3 2

2]

[9 0

2]

[2 2

2]

[4 4

6]

You'll get 1 file (11.0KB)
