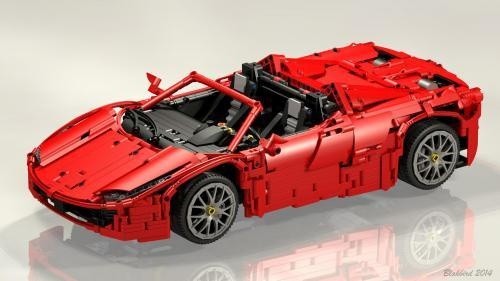

Lego Technic Red Spider building instructions

PDF building instructions

My Own Creation Lego Technic RC model with Power Functions, scale 1:10


partslist available at

http://rebrickable.com/mocs/MOC-1767/brunojj1/red-spider/


About this model:

lenght:     59 studs (47cm)

width:      rear 26 studs (20cm); front 25 studs (19,5 cm)

height:     15 studs (11,5cm)

weight:     2,150 g



featuring the following functions

–     remotely convertible roof - 1 M motor

–     independent wheel suspension

–     driven by 2 XL motors

–     controlled by 2 sets of IR receivers

–     powered by 2 rechargeable batteries

–     servo steering – servo motor

–     functional steering wheel

–     manually switched LED lights - 6 pairs

–     parts amount: about 2,000
