Atlet Low Lifter, Stacker P-Series: PLP, PPC, PPD, PPF, PPL, PPS Electical Diagramm

Original Illustrated Factory Electical Diagramm for Atlet Low Lifter, Stacker P-Series.
Original factory manuals for Atlet Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable, contains Searchable Text and Navigation Bookmarks. No expire date and restrictions.

Covered models:
     PLP 200
     PLP 250
     PPC 120
     PPD 200
     PPD 250
     PPF 120
     PPL 200
     PPL 250
     PPS 200

Format: ZIP, Contained Set of PDF Manuals, Total  577 Pages
Language: English

Contents:

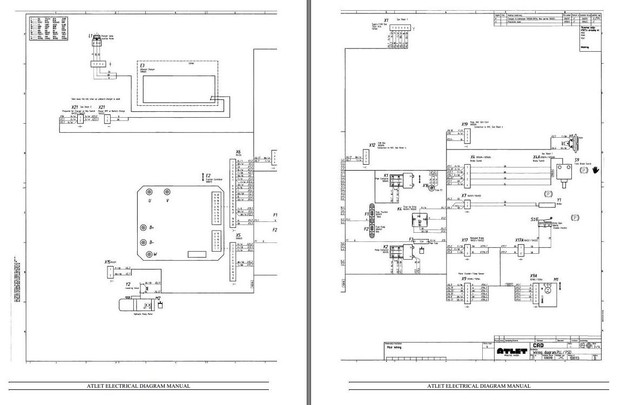

    WIRING DIAGRAM
        Designation Valid from Drawing nr.
            PLP, PLPH, Tiller Head 2011w34– 118225 D Binder 2 Page1.2
            PLP, PLPH, Main Wiring Diagram 2011w34– 118225 D Binder 2 Page 1.4
            PLP/PLPH Pilot Wiring Diagram 2011w34– 118225 D Binder2 Page 1.6
            PLP/PLPH Hydraulic Valves 2011w34– 118225 D Binder 2 Page 1.8
            PP 2004w40 117103 A Binder 2 Page 2.2
            PP 2004w42 117104 A Binder 2 Page 2.4
    CIRCUIT DIAGRAM
        Designation Valid from Drawing nr.
            PLP/PLPH Supply Circuits 2012w27– 118226 C Binder 2 Page 1.14
            PLP/PLPH Traction Power, Electric Brake,
            CAN BUS 2012w27– 118226 C Binder 2 Page 1.16
            PLP/PLPH Lift and lowering, Gates and
            platform, Lift stop 2012w27– 118226 C Binder 2 Page 1.18
            PLP/PLPH ATC control 2012w27– 118226 C Binder 2 Page  1.20
            PLP/PLPH Power Steering 2012w27– 118226 C Binder 2 Page 1.22
