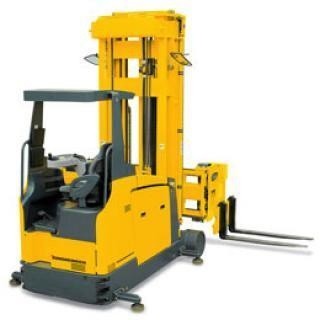

Jungheinrich Electric stacker ETX AC 125, ETX AC 150 (01.2001-09.2004) Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electric stacker.

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

Covered models:
    ETX ac 125 (01.2001-09.2004)
    ETX ac 150 (01.2001-09.2004)

Format: PDF, 817 Pages
Language: English
    1 Commissioning
    2 Operators Manual

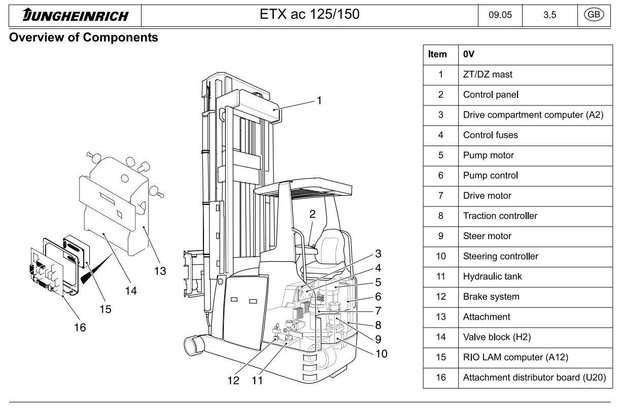

    3 Technical Description of Components
    4 Test and Setting Values
    5 Maintenance of Jungheinrich Products
    6 Diagnostic Software
    7 Service Notes
    8 Ground Installations and Storage Zones
    9 Electrical Diagrams
    10 Hydraulic Diagrams
    11 Service Manual Items
        Tilt safety device
        Sensor Bearing (1B5, 1B8) Disassembly/Assembly from Traction Motor (1M1)
        AC-3 Power Control
        Magnetic Brake Setting Instructions
        Vulkollan Wheel Wear Limits
        Load Chains (Cleaning, Inspection and Lubrication)
        Disassembly I Assembly of Sensor Bearing (2B3 I 2B12) from Hydraulic Motor (2M1)
        Frequency Generator (DDS-Control) with DDS-Emergency Power Supply (optional)
        Wire guidance line driver with emergency power supply
        Brake Delay (Table)
        Brake test via JUDIT
        Magnetic brake (7Y3)
        Bleeding the Hydraulic Brake without a Ventilation Device(Bleeding the Combi Brake)
        Replacing the Brake Fluid
        Connector Layout (with AC 3 Power Control Combination Controller)
        Gear Oil Change
        Rail Guidance Wheel Disassembly / Assembly including Bracket
        Nord-Lock lockwashers
        Mast Anchor Assembly / Adjustment
        Adjusting the Tension Spring Path on the Mast Cable
        Marker Ring Adjustment on Dipstick
        Adjusting the Clearance Height
        Measuring and Adjusting the Mast Tilt on the EFX 410/413
        Converting a Reach Potentiometer (8U29) to a Reach Angle Sensor (8U29)
        User instruction guidelines
        Disassembly/Assembly of the Sensor Bearing (3B17) on the Steer Motor (3M1)
        Steering Actual Value Transmitter 3U9 Disassembly I Assembly and Adjustment
        Converting a Steer Potentiometer (3U9) to a Steer Angle Sensor (3U9)
        RSC28 MH Angle Sensor
        Wire guidance commissioning
        Wire guidance - test distance measurement and safety cutout (cutout limits)
