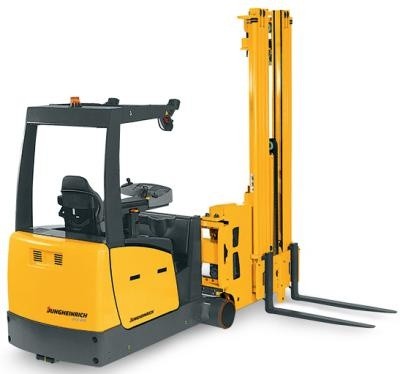

Jungheinrich Electrical Forklift Truck EFX 410 , EFX 413 (10.04-03.13) Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Jungheinrich Electrical Three-sided Forklift Truck Type EFX.

Original factory manuals for Jungheinrich Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

Covered models:
    EFX 410 (10.2004-03.2013)
    EFX 413 (10.2004-03.2013)

Language: English
Format:ZIP, Contained Set of PDF Manuals:
1. Service Manual, PDF, 609 Pages
    Contents:
        Chapter Overview
        1 Commissioning
        2 Operator's Manual
        3 Technical Description of Components
        4 Test and Setting Values
        Maintenance of Jungheinrich Products
        6 Diagnostic Software
        7 Service Notes
        8 Ground Installations and Storage Zones
        9 Electrical Wiring Diagrams
        10 Hydraulic Diagrams
        11 Service Manual Items
            Tilt safety device
            Sensor Bearing (1B5, 1B8) Disassembly/Assembly from Traction Motor (1M1)
            AC-3 Power Control
            Magnetic Brake Setting Instructions
            Vulkollan Wheel Wear Limits
            Load Chains (Cleaning, Inspection and Lubrication)
            Disassembly / Assembly of Sensor Bearing (2B3 I 2B12) from Hydraulic Motor (2M1)
            Instructions for the prevention of accidents and damage to equipment when performing
            servicing,checking and repair operations on fork lift trucks equipped with electronic
            assemblies
            Frequency Generator (DDS-Control) with DDS-Emergency Power Supply (optional)
            Wire guidance line driver with emergency power supply
            Instructions for the prevention of functional failurescleaning operations on fork lift truckand
            damage to equipment when performing
            Brake delay (table)
            Magnetic brake (7Y3)
            Bleeding the Hydraulic Brake without a Ventilation Device(Bleeding the Combi Brake)
            Connector Layout (with AC 3 Power Control Combination Controller)
            Gear Oil Change
            Drive Wheel Disassembly/Assembly
            Nord-Lock lockwashers
            Marker Ring Adjustment on Dipstick
            Adjusting the Clearance Height
            Measuring and Adjusting the Mast Tilt on the EFX 410/413
            Converting a Reach Potentiometer (8U29) to a Reach Angle Sensor (8U29)
            RSC28 MH Angle Sensor
            User instruction guidelines
            Disassembly/Assembly of the Sensor Bearing (3B17) on the Steer Motor (3M1)
            Electronic Lock / Operator-Specific Settings
            RSC28 MH Angle Sensor
            Wire guidance commissioning
