Linde Pallet Truck Type 144: T20SF from N 01084 Operating Instructions (User Manual)

Original Illustrated Factory Operating Instructions (User Manual) for Linde Pallet Truck Type 144.

Original factory manuals for Linde Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck

Covered models:
T20SF from N 01084

Format: PDF, 67 Pages
Language: English

Contents:

Description
    EC Declaration of conformity
    Labels
    Technical data
    Technical description

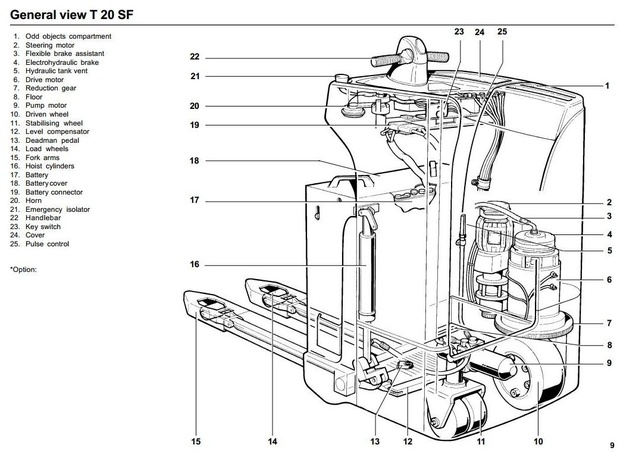

    General view
    Controls
    Multifunction indicator description (until 01/2009)
    Multifunction indicator description (from 02/2009)
    Linking of screens
    Multifunction indicator adjustments (until 01/2009)
    Multifunction indicator adjustments (from 02/2009)
    Biometry option (from 07/2009)
Operation / Daily checks and maintenan prior to operation
    Safety rules
    Definition of terms related to safety
    Use of lubricants
    Residual risks
    Stability
    Periodical checks on the truck
    Advice for initial use
    Checks before initial operation
    Parameterisation of the multifunction indicator
    Check the Forward/Reverse and raise/lower controls
    Checking the electrical steering
    Checking the safety braking
    Check emergency stop button
    Checking the horn operation
    Check condition of battery charging
    Opening the battery cover with front cover
    Opening the battery cover with side cover
    Connecting/disconnecting the battery connector
    Recharging the battery with an external charger
    Checking the condition of cables, terminals and battery contact
    Removing/replacing the battery
    Changing front-end battery with the help of braces
    Changing the front-end battery with the help of a hoist
    Changing the side battery:
    with the help of a trolley
    with the help of a mobile carrier
Steering
    Instructions for use
    Floor adjustment
    Startup
    Emergency isolator
    Indication of direction of travel
    Forward-reverse travel
    Reversal of direction of travel
    Steering
    Direction of deflection in forward movement
    Safety when turning: speed limitation
    Operating the truck on ramps
    Ascending slopes
    Descending slopes
    Departure on ramps
Braking, lifting, lowering, horn
    Automatic braking
    Counter current braking
    Electromagnetic braking
    Raising / lowering the fork arm
    Horn control
Handling loads
    Loading
    Transporting a load
    Full load safety: speed limitation
    Level compensator
    Unloading
    Before leaving the truck
Jacking, towing
    Slinging the truck
    Jacking the truck
    Towing
    Transporting and storing the truck
Maintenance
    General remarks
    Checks and maintenance work after the first
    50 hours of service*
    Scheduled maintenance and inspection
Maintenance as required
    Cleaning the truck
    Cleaning the battery and battery compartment
    Remove floor plate
    Opening the motor cover
    Removing the handlebar
    Removing the variator cover
    Fuses
Maintenance every 500 hours
    Checking level of electrolyteand water supplement
    Checking the electrolyte gravity
    Checking the condition of cables, terminals and battery contact
    Checking the security of wheels
    Checking the condition of the wheels
    Checking and cleaning the speed control fan
    Lubricating the steering gears
    Lubricating the lifting system (option)
    Check that hydraulic circuits are leak proof
    Checking the hydraulic oil level
    Checking the condition and fixing the cables and electrical connections
    Cleaning the electrical control panel
    Cleaning and checking the contact wear
    Checking and replacing the traction motor brush if necessary
    Checking and replacing the steering motor brush if necessary
    Adjustment of electromagnetic brake
Maintenance every 1000 hours
    Checking the mechanical fixing of components
    Check hydraulic oil level of gear reducer
    Maintenance every 2000 hours
    Remove the motor pump unit
    Replacing the hydraulic oil
    Replacing the gear reducer oil
    Recommended lubricants
    Hydraulic diagram
    Electric diagram
    T20SF multi. indicator (until 01/2009)
    T20SF multi. indicator (from 02/2009)
    Index .
