Cat Caterpillar DP100, DP115, DP135, DP150 Forklift Repair Service Manual PDF

Cat Caterpillar DP100, DP115, DP135, DP150 Forklift Repair Service Manual PDF

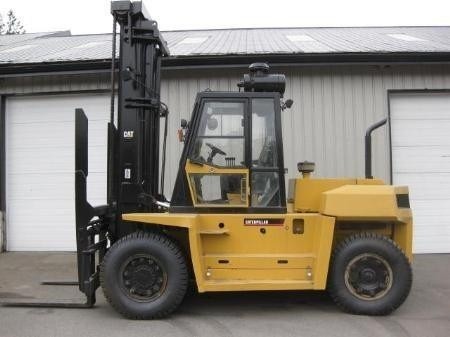

This service manual contains all necessary service and repair information for Cat DP100, DP115, DP135, DP150 Forklift models equipped with the Mitsubishi 6D16 engine. In this service manual you will find detailed specifications, procedures, illustrations and diagrams to service the forklift and engine to the manufacturer’s standards. This 2 volume set covers both the forklift chassis and engine. View the Caterpillar DP100, DP115, DP135, DP150 Forklift Complete Service Manual on your computer or print off pages as needed.

Covers: Caterpillar DP100, DP115, DP135, DP150 Forklift with serial numbers

DP100 3DP-10011-up
DP115 4DP-10011-up
DP135 5DP-10011-up
DP150 6DP-10011-up

Topics in the Cat Caterpillar DP100, DP115, DP135, DP150 Forklift Repair Service Manual PDF:

Vol. 1 Chassis and Mast:
General Information
Cooling System
Electrical System
Electrical System: Schematic (Wiring Diagram)
Power Train
2-Speed Powershift Transmission
3-Speed Powershift Transmission
Front Axle and Reduction Differential
Rear Axle
Brake System
Steering System
Hydraulic System
Mast and Forks
Hydraulic Fork Positioners
Hydraulic Side Shifters
Service Data
Torques

Vol. 2 6D16 Diesel Engine:
General
Engine Service and Overhaul
Lubrication System
Fuel and Engine Control
Cooling
Intake and Exhaust
Electrical System
Special Equipment

Pages: 783
Format: PDF
Compatibility: Windows/Mac/Tablet
Note: Please contact us with your serial number before purchasing. Instant digital download only – no printed copy or CD-ROM media.
